JBL SRX812 12″ 2-Way Bass Reflex Passive System

JBL SRX812 12″ 2-Way Bass Reflex Passive System

Out of stock
SKU: JBLSRX812 Category:
snap finance

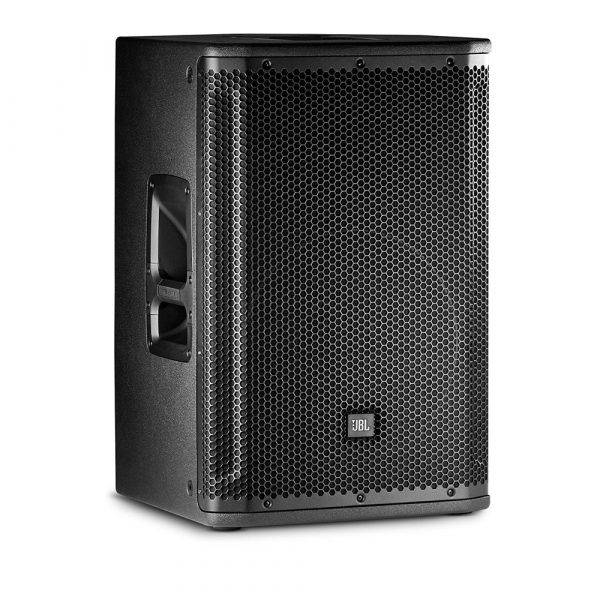

JBL SRX812 is a 12″ 2-Way Bass Reflex Passive System, designed for use as a light-duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor-standing and monitor use, the SRX812 is suitable for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as the dbx VENU360 signal processor.


Premium JBL Transducers

Tunings available for Crown amps and dbx signal processors

Fully supported in Audio Architect

Power Handling: 3200W Peak, 1600W Program, 800W Continuous

Frequency Range: 41Hz-20kHz

Frequency Response: 57Hz-20kHz

Max SPL: 135dB

Coverage Pattern: 90 x 50

Amplification options: Passive/Bi-Amp


System Type: Passive 12”, two-way, bass-reflex

Maximum SPL Output: 135dB

Frequency Range (-10dB): 41hz – 20khz

Frequency Response (- 3dB): 57hz – 20khz

Sensitivity (1W/1m): 95 dB

System Power Rating: 3200W Peak, 1600W Program, 800W Continuous

Nominal Impedance: 8 Ohm

Connectors: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)

Operational Modes: Passive/Bi-Amp

LF Driver: 2272H

HF Driver: 2432H

Coverage Pattern: 90 x 50

Crossover Frequency: 1.9khz

Enclosure Material: 18mm plywood

Monitor Angle: 50°

Suspension/Mounting: Dual 36mm pole socket, 12 x M10 Suspension points

Handles: 3

Finish: Obsidian Duraflex finish

Grille: Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing

Dimensions (LxWxH): 16.87″ x 16.31″ x 25.11″ (429mm x 415mm x 638mm)

Weight: 55.0 lbs (24.9kg)

Shipping Weight: 65 lbs (29.3kg)
