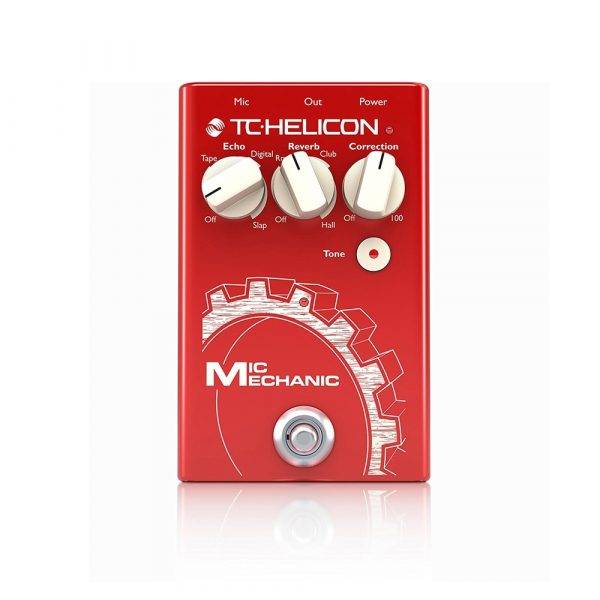

TC-Helicon Mic Mechanic 2 is a compact vocal toolbox in a easy-to-use pedal, improving on its predecessor – the Mic Mechanic. As your personal sound engineer, the Mic Mechanic 2 provides time-tested tone and effects you can take anywhere to always sound your best.
Reverb simulates a physical space, allowing your voice to fit into the music perfectly. Whether it’s something small like a room or large like a concert hall, the Mic Mechanic 2’s vocally tuned reverb compliments your voice and enhances every performance.
8 high quality Reverb and Echo presets
Separate Reverb (Room, Club, Hall) and Delay (Tap and Slap), with combinations of both
Footswitch tapping can match echoes to song tempo
Tone button for Adaptive EQ, Compression, De-essing and Gating
Battery operation (batteries optional)
Auto Chromatic Pitch Correction
Easy connection between standard mic and mixer
Phantom power always available
Low noise microphone pre-amp
Automatic input gain – no more setting and adjusting input gain
Mic Control for remote on/off switching with optional TC-Helicon MP-75, MP-76 (main button only) and Sennheiser e835 FX mics
Individual style select/mix controls for Reverb and Echo
Rugged all-metal construction
USB connection to VoiceSupport application offering updates, product-specific news and more
9V operation (vs 12V) to accommodate common pedalboard power supplies
Controls
8 Reverb and Echo presets
Dry/wet mix
Correction amount
Adaptive Tone on/off
Mic Control on/off
Microphone input gain level
Footswitch on/off
Analog Input
1 x XLR Microphone, balanced
Input Impedance: 3.4 / 1.7 kOhms
Microphone Input Clip Sensitivity: -1 dBu
Phantom Power: 24 V (always on)
Analog Output
1 x XLR
Output Impedance (balanced/unbalanced): 200/100 Ohms
Output Full Scale: +7.5 dBu
Frequency Response: 20 Hz to 20 kHz, +0/-0.3 dB
Construction
Two-part die-cast metal
Rubberized base
Environmental
Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -22 to 167°F / -30 to 70°C
Humidity: Maximum 90% non-condensing
Safety
EMC: Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
Safety: Certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA
Power Supply
12 VDC
5.6 W power consumption
Battery: 4 x AA batteries
Dimensions (WxDxH): 3.5 x 5.4 x 2.3″ / 90 x 140 x 60 mm
Weight: 0.9 lb / 0.4 kg
