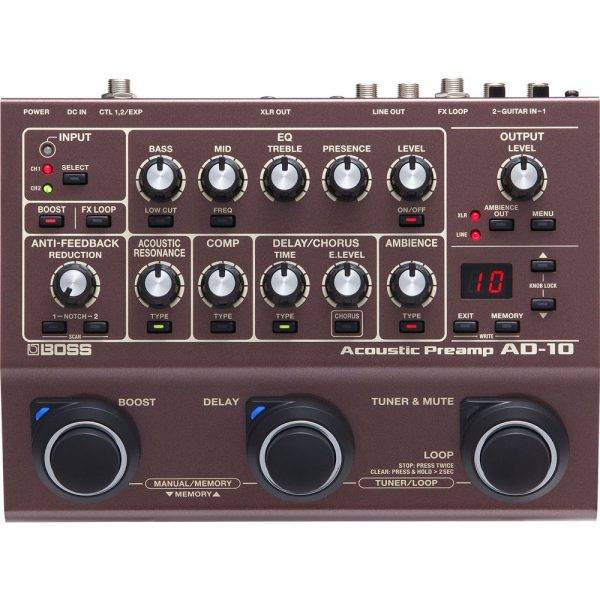

Boss AD-10 Acoustic Preamp

Boss AD-10 Acoustic Preamp

$349.99

6 in stock

Qty:
Compare
SKU: BOSAD10 Category:
snap finance

Description

Boss AD-10 Acoustic Preamp is a new professional preamp/DI pedal for acoustic-electric guitar. It features the latest generation of Boss;s Acoustic Resonance technology, which restores natural acoustic tone in amplified acoustic stage instruments. The pedal also includes numerous tone-shaping tools, onboard effects, and a looper, plus newly developed functions to control feedback with minimal tonal coloration. Hugely powerful yet simple to use, the AD-10 gives serious acoustic players everything they need to achieve rich, organic tones in any performing environment.

Features

Professional preamp/DI for performing and recording with acoustic-electric guitar

Acoustic Resonance restores the warm and rich resonance lost with most pickup systems

Four-band EQ and variable low-cut filter tuned to deliver optimized tone shaping for acoustic guitar

Multi-band compressor with MDP technology provides transparent dynamics control

Newly developed anti-feedback functions control feedback while maintaining balanced tone

Two channels with independent EQ for connecting two instruments or blending multiple pickup sources

Onboard ambience, delay, and chorus effects with multiple sound types and adjustable parameters

Boost function with adjustable tone setting

Memory function for storing 10 sound setups

Onboard looper with 80 seconds of recording time

XLR and ¼-inch connectivity for interfacing with PA systems, stage monitors, amps, and external effects

USB audio interface functionality for computer recording and playback

Fast and accurate built-in tuner

Compact and portable design; runs on AC adapter or six AA-size batteries

Specification

Nominal Input Level:

GUITAR IN 1,2: -10 dBu (Adjustable)

RETURN: -10 dBu

Input Impedance:

GUITAR IN 1,2: 10 M ohms

RETURN: 220 k ohms

Nominal Output Level:

SEND: -10 dBu

LINE OUT L/PHONES, R/MONO: -10 dBu

XLR OUT L, R: -10 dBu

Output Impedance:

SEND: 1 k ohm

LINE OUT L/PHONES, R/MONO: 44 ohm

XLR OUT L, R: 600 ohms

Mode:

Manual

Memory

Number of Memory: 10

Effects:

ACOUSTIC RESONANCE (3Type)

COMP (2Type)

4 BAND EQ, LOW CUT

BOOST

CHORUS (3Type)

DELAY (3Type)

REVERB (3Type)

ANTI-FEEDBACK (REDUCTION, NOTCHx2)

Phrase Loop:80 sec

Display: 7 segments, 2 digits LED

Connectors:

GUITAR IN 1,2 jack: 1/4-inch phone type

SEND: 1/4-inch phone type

RETURN: 1/4-inch phone type

XLR OUT L, R connectors: XLR type

LINE OUT L/PHONES, R/MONO jacks: 1/4-inch phone type

EXP/CTL1,2 jack: 1/4-inch TRS phone type

USB COMPUTER port: USB type B

DC IN jack

Power Supply:
AC adaptor
Alkaline battery (AA, LR6) x 6

Current Draw: 300 mA

Expected battery life under continuous use:

Alkaline battery: Approx. 6 hours

*These figures will vary depending on the actual conditions of use.

Accessories:

Owner’s manual

Leaflet “USING THE UNIT SAFELY”

AC adaptor

Options (sold separately):

Expression Pedal: EV-30, FV-500H/L, Roland EV-5

Footswitch: FS-5U

Dual Footswitch: FS-6, FS-7

Width: 217 mm; 8-9/16 inches

Depth: 161 mm; 6-3/8 inches

Height: 65 mm; 2-9/16 inches

Weight (including batteries): 1.3 kg; 2 lbs 14 oz
