BOSS AW-3 Dynamic Wah with Pig Power 9V DC 1000ma Power Supply

BOSS AW-3 Dynamic Wah with Pig Power 9V DC 1000ma Power Supply

Out of stock
SKU: BOSAW3PP9V Category:

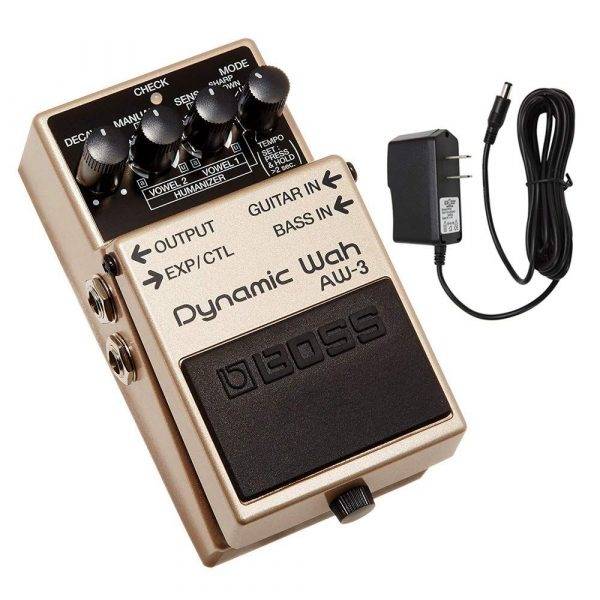

BOSS AW-3 with PigHog 9V Power Adapter

AW-3 Dynamic Wah Pedal from BOSS. By itself as a stompbox, the AW-3 functions like an auto-wah. Set the rate and let the funk begin. For easy tempo changes, the tap-tempo mode allows you to use the footswitch to tap out the desired tempo, and the AW-3 will follow. The AW-3 also functions dynamically, like an envelope filter, using the level of your guitar’s signal to modulate the “position” of the wah. Funk and fusion players like guitarists Guthrie Govan and bassist Bootsy Collins have used this type of sound to great rhythmic effect.

Pig Power is a 9V power supply with 1000 mA can power up to 10 pedals at once (PP10DC 10 Spot Daisy Chain not included), with a minimal design that requires just a single outlet. The positive sleeve/negative tip works with most effects pedals on the market, including Boss PSA or ACA, Danelectro DA-1, DOD PS-200R, Dunlop ECB-03, Ibanez AC-109, Korg A30950, Morley 9V, Zoom AD-0006, and more! The power adapter is backed by a one year limited warranty

Key Features

  • Compact pedal creates a variety of classic “wah” effects
  • Dynamic wah sounds provide variable effect based on picking strength
  • “Humanizer” effect creates human voice-type vowel sounds
  • Dedicated Bass input for processing bass guitar
  • EXP Pedal mode allows wah control via optional expression pedal

BOSS AW-3 Specs

Nominal Input Level -20 dBu
Input Impedance 1 MOhm
Output 1 x unbalanced 1/4″ instrument TS
Nominal Output Level -20 dBu
Output Impedance 1 kOhm
Recommended Load Impedance 10 kOhms or greater
Residual Noise Level: -92 dBu
Dimensions 2.9 x 5.1 x 2.4″ / 73 x 129 x 59 mm
Weight 15 oz
