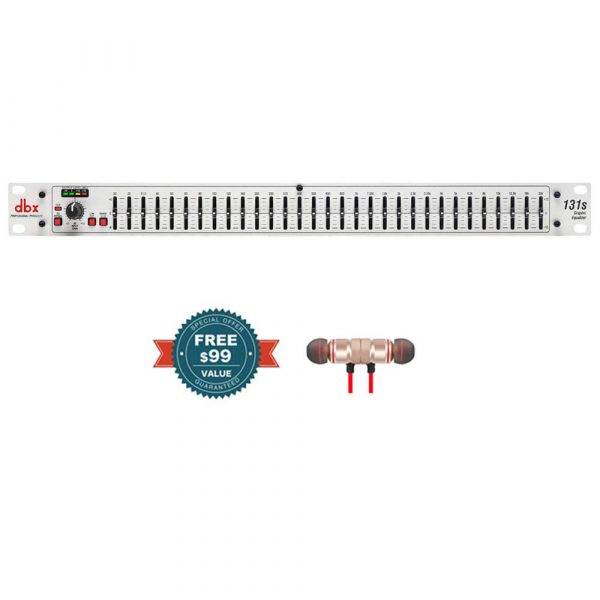

dbx 131s Single Channel 31-Band Equalizer with Wireless Earbuds

dbx 131s Single Channel 31-Band Equalizer with Wireless Earbuds

Out of stock
SKU: DBXGE131S--erb Category:

dbx 131s is a single channel, 31 band, 1/3 octave graphic equalizer housed in a single space, rack mount chassis. The processor is equally suitable for live applications, audio installations, and for use in a studio. From its extended frequency response and excellent dynamic range, to the quality components and meticulous attention to detail, the 131s offers exceptional sound and rugged reliability.

Key Features

  • Single, 31-band, 1/3-octave constant Q graphic EQ
  • Switchable boost/cut ranges of +/-6 or +/-12dB
  • 20mm non-conductive sliders
  • 12dB per octave, 3dB down at 50Hz low-cut filter
  • Front panel bypass switch
  • 4-segment LED ladders for monitoring output levels
  • XLR and 1/4″ TRS inputs and outputs

dbx 131s Specs

Filter Type Graphic, constant Q
Number of Channels Single
Frequency Bands 31
Bandwidth 1/3-octave
Range (Boost/Cut) +/-6dB or +/-12 dB, switchable
Input Impedance 40kΩ balanced, 20kΩ unbalanced
Output Impedance 100Ω balanced, 50Ω unbalanced
Dynamic Range >112dB typical
Noise SNR: >95dB typical
THD + N <0.003%
Crosstalk <-90dB, 20Hz to 20kHz
Dimensions (WxHxD) 19 x 6 x 1.75
Weight 4.8 lb

Enjoy your Free Bluetooth Wireless Earbuds, actual item color and style may vary.
