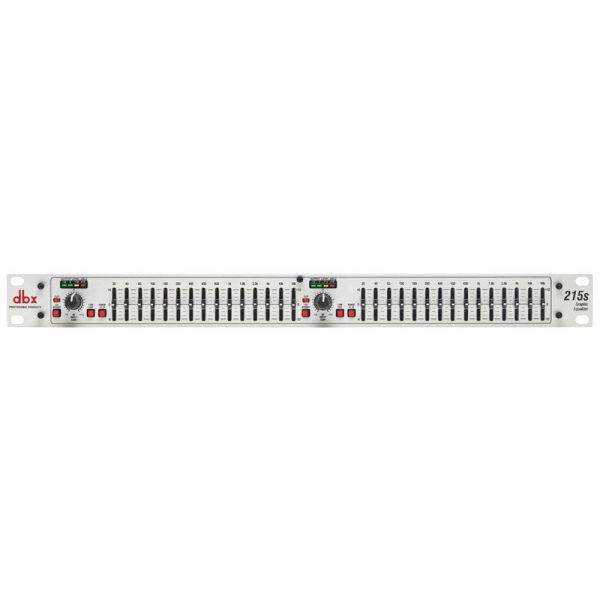

dbx 215s is a dual channel, 15 band, 2/3 octave graphic equalizer including ±12 dB input gain, switchable ±6 dB or ±12 dB boost/cut range, 20mm nonconductive sliders, an intuitive user interface, and output level metering. The 215s gives you exceptional sound and rugged reliability, from its extended 10Hz to 50kHz frequency response and 112 dB dynamic range to the quality componentry and meticulous attention to detail.
Sure to find a home in the studio, on tour and with installed sound venues, the 215s is destined to take its rightful place in the lineage of great dbx signal processors that are the professional’s choice in signal processing.
Dual 15-band, 1/3-octave Constant Q frequency bands
Switchable boost/cut ranges of ±6 or ±12 dB
Front panel bypass switch
±12 dB input gain range
4-segment LED ladders for monitoring output levels
XLR and TRS Inpts and Outputs
Frequency Repsonse of 50kHz
Dynamic range of greater than 108dB
Input Connectors: 1/4″ TRS, female XLR (pin 2 hot)
Input Type: Electronically balanced/unbalanced, RF filtered
Input Impedance: Balanced 40 kOhm, unbalanced 20 kOhm
Max Input: >+21dBu balanced or unbalanced
CMRR: >40dB, typically >55dB at 1kHz
Output Connectors: 1/4″ TRS, male XLR (pin 2 hot)
Output Type :Impedance-balanced/unbalanced, RF filtered
Output Impedance: Balanced 100 ohm, unbalanced 50 ohm
Max Output: >+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
Bandwidth: 20Hz to 20kHz, +0.5/-1dB
Frequency Response: 50kHz, +0.5/-3dB
Dynamic Range: Typically >112dB
Signal to Noise Ratio: Typically >95dB
THD+Noise: <0.003%
Interchannel Crosstalk: <-90db, 20Hz to 20kHz
Bypass Switch: Bypasses the graphic equalizer section in the signal path
Low cut Switch: Activates the 50Hz 12dB/octave Bessel high-pass filter
Range Switch: Selects either +/- 6dB or +/- 12dB slider boost/cut range
Operating Voltage: 100VAC-240VAC 50/60Hz
Power Consumption: 15W
Power Connector: IEC receptacle
Dimensions (WxHxD): 19 x 1.75 x 6″ (48.26 x 4.4 x 15.24cm)
Unit Weight: 4.8 lbs.(2.2 kg)
