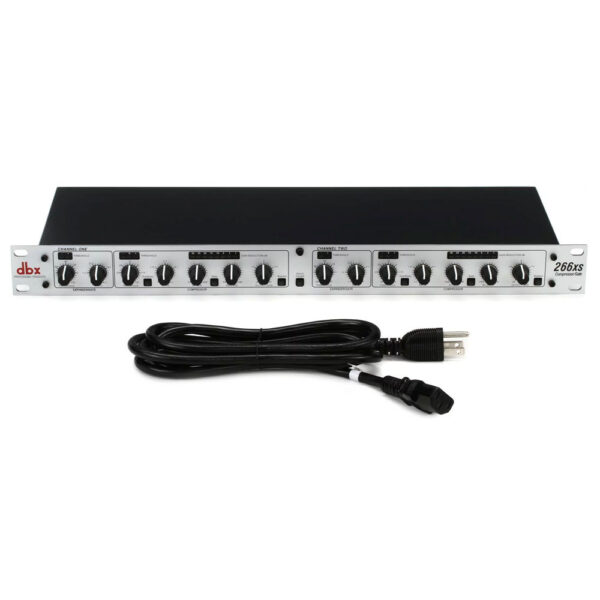

dbx 266xs Compressor / Gate

dbx 266xs Compressor / Gate

$169.00

Out of stock

Compare
SKU: DBX266XS Category:
snap finance

Description

dbx 266xs Compressor/Gate is the latest in a long line of the world’s most successful compressors from the inventors of the technology. Its patented Overeasy compression technology provides smooth and musical performance while the AutoDynamic attack and release controls, found only on dbx compressors, puts great sound within easy reach. The 266xs can operate in stereo or dual-mono modes, has true RMS power summing and features quality XLR and 1/4″ TRS inputs and outputs. It cuts no corners on visual feedback with gain reduction metering and easy-to-read backlit switches.

Adding a dbx 266xs to your live sound rig or studio gives you more dynamic control to help create a more polished, professional sound. Having compression in your audio chain gives you the ability to smooth out uneven levels, add sustain to guitars and fatten up your drums. It also makes it easy to bring vocals to the front of your mix – adding greater clarity and making them stand out from the surrounding instruments.

Features

Error proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes

New gate timing algorithms ensure the smoothest release characteristics

Program-adaptive expander/gates

Great sounding dynamics control for any type of program material

Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup

Stereo or dual-mono operation

Balanced inputs and outputs on 1/4″ TRS and XLR connector

Side Chain insert

Classic dbx “Auto” mode

Specification

Input Connectors: 1/4″ TRS and female XLR (pin 2 hot)

Input Type: Electronically balanced/unbalanced, RF filtered

Input Impedance: 40kΩ balanced/unbalanced

Max Input: >+22dBu Balanced or Unbalanced

Output Connectors: 1/4″ TRS, female XLR (pin 2 hot)

Output Type: Impedance-balanced/unbalanced, RF filtered

Output Impedance: +4dBu: 100Ω balanced, 50Ω unbalanced; -10dBu: 1kΩ balanced, 500Ω unbalanced

Max Output: >+21dBu balanced/unbalanced into 2kΩ or greater; >+18dBm balanced/unbalanced (into 600Ω)

Sidechain: 1/4″ TRS Phone, Normalled: Ring = Output (send); tip = Input (return)

Sidechain Impedance: Tip = >10kΩ (Input), Ring = 2kΩ (Output)

Sidechain Max Input Level: Tip = >+22dBu (Input)

Sidechain Max Output Level: Ring = >+20dBu (Output)

Compressor Threshold Range: -40dBu to +20dBu

Compressor Threshold Characteristic: Selectable OverEasy® or hard knee

Compressor Ratio: 1:1 to Infinity:1

Compressor Attack Time: Scalable Program-Dependent AutoDynamic™

Compressor Release Time: Scalable Program-Dependent AutoDynamic™

Expander/Gate Threshold Range: -60dBu to +15dBu

Expander/Gate Ratio: 1:1 to 4:1

Expander/Gate Attack Time: <100µs

Expander/Gate Release Time: Program-dependent

Bandwidth: 0.35Hz – 90kHz, +0/-3dB

Frequency Response: Flat: 20Hz-20kHz, +0, -0.5dB

Noise: <-93dBu unweighted (22kHz measurement bandwidth)

THD+Noise: Typically <0.2%; Any Amount of Compression @1kHz

IMD: Typically <0.2% SMPTE

Dynamic Range: >114 dB, unweighted

Interchannel Crosstalk: <-95dB, 20Hz to 20kHz

CMRR: >40dB, typically >55dB at 1kHz

Stereo Coupling: True RMS Power Summing™

Power Consumption: 15 Watts Maximum

Operating Voltage: 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz

Operating Temperature: 0°C to 45°C (32°F to 113°F)

Dimensions: 1.75″ x 5.75″ x 19″ (4.45 cm x 14.6 cm x 48.26 cm )

Unit Weight: 4.84 lbs (2.19 kg)

Additional information

Weight 10 lbs
