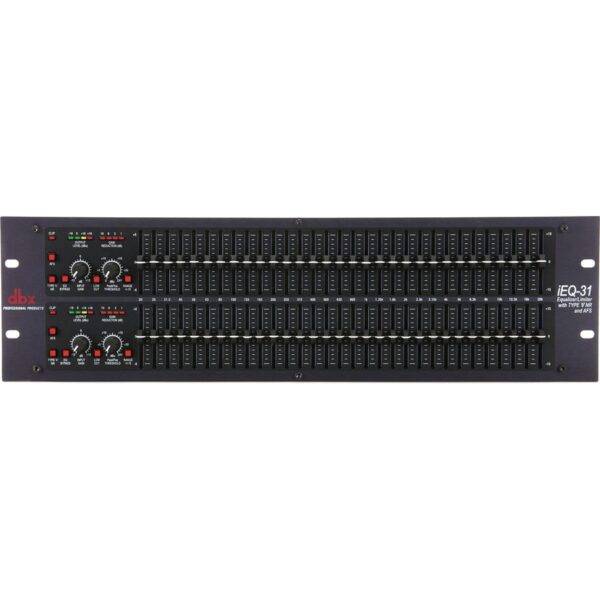

dbx iEQ-31 Dual 31-Band Graphic EQ/Limiter with Type V NR and AFS

dbx iEQ-31 Dual 31-Band Graphic EQ/Limiter with Type V NR and AFS

Out of stock
SKU: DBXIEQ31 Category:

dbx iEQ-31 not only includes two 31-band channels of 1/3-octave equalization but it also gives you +12 dB input gain range, switchable +6 or +15dB boost/cut range and 40mm faders with nonconductive nylon sliders.

The Advanced Feedback Suppression (AFS) feedback elimination module is provided. The AFS uses Precision Frequency Detection and state-of-the-art processing to determine the exact portions of a given frequency that is causing feedback without removing approximately half of the signal power, as is the case with the traditional method of moving the offending frequency’s slider.

In addition, the iEQ-31 provides dbx Type V noise reduction and PeakStopPlus limiting for taming unwanted peaks. XLR, 1/4″ and Euroblock inputs and outputs and an intuitive user interface with comprehensive output and gain reduction metering round out this professional EQ that is perfect for touring applications or in installed sound venues.


Advanced Feedback Suppression (AFS™)

Type V™ Noise Reduction

PeakStopPlus® Limiting

1/3-octave Constant Q frequency bands

Switchable boost/cut ranges of +6 or +15dB

18 dB per octave 40Hz low-cut filter

+12dB input gain range

XLR, TRS and Euroblock Inputs and Outputs

Internal Toroidal Transformer

Dynamic range of greater than 113dB

User Power Up Features

Relay Bypass for Power Failure System Protection


Input Connectors: 1/4″ TRS, female XLR (pin 2 hot), and Euroblock

Input Type: Electronically balanced/unbalanced, RF filtered

Insert Impedance: Balanced 40k ohm, unbalanced 20k ohm

Max Input: >+22dBu balanced or unbalanced

CMRR: >40dB, typically >55dB at 1kHz

Output Connectors: 1/4″ TRS, male XLR (pin 2 hot), and Euroblock

Output Type: Active-balanaced/unbalanced, RF filtered

Output Impedance: Balanced >120 ohm, unbalanced >60 ohm

Max Output: >+20dBu balanced/unbalanced into 2k ohm or greater

Frequency Response: 20Hz to 20kHz, +0.5/0.25dB

Dynamic Range: >113dB, “A” weighted

THD+Noise: <0.003%, typical at +4dBu, 1kHz

Interchannel Crosstalk: <-80dB, 20Hz to 20kHz

Noise Reduction: Up to 10dB of dynamic broadband noise reduction

Digital Resolution: 24 bits

Sample Rate: 48kHz

Latency: 2msec

Operating Voltage: 120VAC 60Hz, 220/240VAC 50/60Hz

Power Consumption: 17 Watts

Power Connector: IEC receptacle

Dimensions (WxHxD): 19 x 3.5 x 7.9″

Weight: 9.25 lbs
