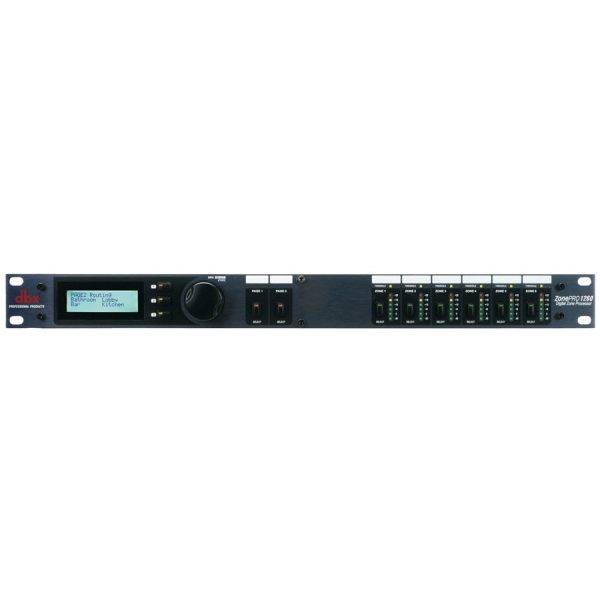

dbx ZonePRO 1260 Digital Zone Processor has the ability of create both mono and stereo zones. Both of these zones types can receive mono and stereo signals and can be setup with subwoofers to extend the frequency range. The 1260 provides a wealth of output processing such as Bandpass Filtering, Parametric EQ, Dynamics and Delay for making the system sound better. This processing can be used on mono and stereo zones, both with and without subwoofers. The ZonePro 1260 also provides input processing on the mic/line inputs to maximize intelligibility. This processing includes a Highpass Filter, Parametric EQ, and two DSP inserts for selection from a wide variety of functions like Feedback Suppression, Gating, De-Essing, etc.
With the programmable ZC (Zone Control) remotes, the 1260 allows end user control over the parameters that are important to them like Source Selection and Volume. The ZonePro 1260 also provides programmable front panel control of those same end-user control functions. Finally, Zone Control extends to functions like room combining utilizing the Scene function.
The 1260 offers full control via RS-232 for ZonePro GUI configuration, editing and control or third party control systems such as AMX and Creston.
Twelve Inputs, Six Outputs
Controllable via Computer (Ethernet)
Advanced Feedback Suppression (AFS™)
Autowarmth®
Auto Gain Control
Compression
Limiting
Noise Gating
Notch Filtering
Bandpass and Crossover Filters
Parametric EQ
Security Lockout
Wall Panel Control
RS-232 Control
IEC, UL and CSA Approvals
Input: 12 Total (2) Switchable mic or line, (8) RCA, and (1) S/PDIF
Input Connectors: Euroblock (Line and Mic) RCA (Source)
Input Impedance: Euroblock > 50kΩ Balanced, >25kΩ Unbalanced, RF Filtered; RCA >25kΩ Unbalanced, RF Filtered
Max Input: +20dBu Mic/Line, +12dBu RCA
CMRR: > 40dB, typically >55db @ 1kHz
Mic Preamp gain: 30 to 60dB
Mic Preamp Equivalent Input Noise (EIN): <-118dB
Mic Preamp Phantom Power: 15V
Output: 6 Analog
Output Connectors: Euroblock
Output Type: Electronically balanced, RF filtered
Output Impedance: 120 ohms balanced, 60ohm unbalanced
Max Output: +20dBu
A/D Converter: dbx Type IV™ conversion system
A/D Dynamic Range: (line) >113 dB, A-weighted, >110 dB unweighted
Type IV Dynamic Range: >119 dB, A-weighted, 22kHz BW; >117 dB, A-weighted, 22kHz BW
Sample Rate: 48kHz
D/A Dynamic Range: 112 dB A-weighted, 109dB unweighted
Dynamic Range: >110 dB A-weighted, >107dB unweighted
THD+Noise: 0.003% typical at +4dBu, 1kHz, 0dB gain
Frequency Response: 20Hz – 20kHz, +/-0.5dB
Interchannel Crosstalk: >80dB typical
Propagation Delay: 0.6 msec
Operating Voltage: 100-240 VAC, 50/60Hz
Power Consumption: 27 W
Dimensions (WxHxD): 19 x 1.75 x 5.75″ (483 x 45 x 146mm)
Unit Weight: 6.8 lbs.(3.1 kg)
