Description
We mainly used this device with the PreSonus Sub8 subwoofer and Eris 3.5 speakers, and it was a great way to incorporate Bluetooth into that wired setup. We also used the device in an existing home studio setup.

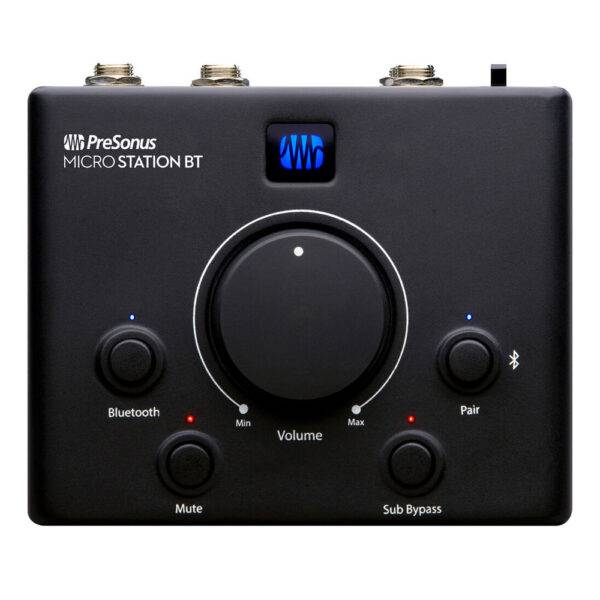

PreSonus Micro Station BT is a compact, convenient, and stylish Bluetooth 5.0 stereo monitor controller. It receives audio from a phone, tablet, or other Bluetooth source and feeds it to your full-range powered speakers.
Also, the PreSonus MicroStation BT also can be hardwired to a powered subwoofer to create a 2.1 listening environment.
Quickly pair your Bluetooth-enabled device with the press of a button. A stereo ⅛-inch input enables hardwiring your audio source when you don’t want to use Bluetooth, and a Bluetooth On/Off button lets you toggle between Bluetooth and analog sources. Balanced left and right ¼-inch TRS inputs route audio from pro audio hardware, such as an audio interface, to your speakers and subwoofer.
Using the balanced ¼-inch TRS or unbalanced RCA Subwoofer outputs, you can connect your favorite powered subwoofer. An ⅛-inch stereo headphone/aux output lets you connect headphones or send stereo audio for streaming, recording, and more.
Introducing the Micro Station BT.
Inputs and Outputs
- Stereo Bluetooth input lets you add wireless connectivity to any speaker
- Stereo pair of balanced ¼” TRS and stereo ⅛” TRS inputs make it easy to connect both pro and consumer audio gearinputs
- Full-range Left/Right Balanced ¼” TRS to connect professional studio and media reference monitors
- Stereo ⅛” TRS headphone/aux output lets you connect your favorite headphones or output to a consumer device for streaming, recording, and more
- Balanced ¼” TRS and unbalanced RCA Subwoofer output to connect your favorite powered subwoofer
Controls
- Large ergonomic Volume knob controls overall full-range and subwoofer level
- Bluetooth on/off button lets you toggle between Bluetooth and analog sources and an easy-to-use pairing button lets you quickly pair your favorite Bluetooth-enabled device
- Sub Bypass button lets you mute your subwoofer without silencing your full-range speakers
- Mute button with LED lets you silence your speakers or headphones
Audio Inputs
Main L/R Inputs
Type: 1/4″ Balanced TRS Active
Dynamic Range: 108 dB
Frequency Response: 20 Hz to 20 kHz
THD+N: 0.001%
S/N Ratio: > 102 dB/p>
Bluetooth Input
Type: Bluetooth 5.1
Frequency Response: 20 Hz to 20 kHz
Frequency Response (±0.5 dB): 10 Hz to 65 kHz
Auxiliary Input
Type: 1/8″ Unbalanced TRS
Frequency Response: 20 Hz to 20 kHz
THD+N: <0.01%
Dynamic Range: 108 dB
Audio Outputs
Main Output
Type: ¼” TRS Active Balanced
Frequency Response: 20 Hz to 20 kHz
THD+N: <0.02%
S/N Ratio: >98 dB
Headphone Output
Type: 1/8″ Unbalanced TRS, Stereo
Maximum Level: 32.5 mW / Channel
Frequency Response: 20 Hz to 20 kHz
THD+N: <0.50%
Aux Output
Cue Level Range: 1/8″ Unbalanced TRS, Stereo
Frequency Response: 20 Hz to 20 kHz
THD+N: 0.001%
Subwoofer Outputs
Type: 1 ¼” Balance TRS Active; 1 Unbalanced RCA
Frequency Response: 20 Hz to 200 Hz
THD+N: 0.002%
S/N Ratio: >102 dB
Physical
Dimensions (WxHxD): 4.9 x 2.2 x 3.9 (125 x 56 x 100mm)
Weight: 1 lb. (0.45 kg)
