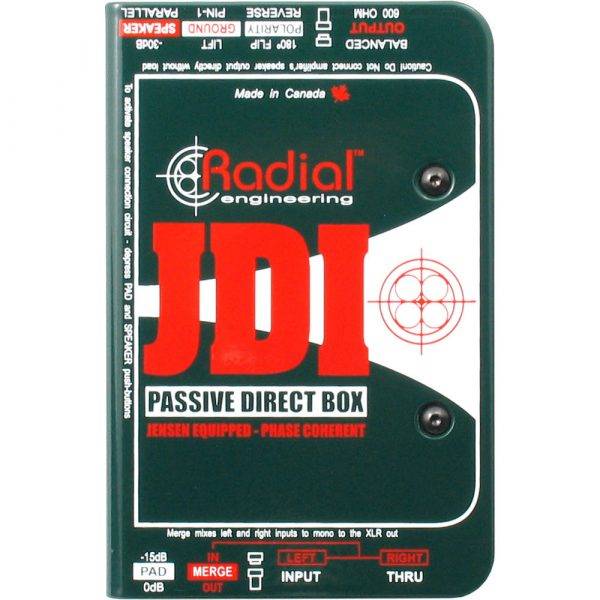

Radial Engineering JDI Passive DI for Acoustic Guitar, Bass & Keyboard

Radial Engineering JDI Passive DI for Acoustic Guitar, Bass & Keyboard

Out of stock
SKU: REJDI Category:
snap finance

Radial Engineering JDI passive direct box handles extreme signal levels without distortion of any kind. Unlike an active DI that is limited by the buffering amplifier’s rail voltage, the JDI employs a Jensen audio transformer as the engine. Jensen transformers are legendary in their ability to gracefully handle transients while delivering a smooth, warm sounding Bessel curve, reminiscent of the finest vintage gear. Ruler flat from 10Hz to 40kHz and with virtually zero phase deviation, the JDI delivers the natural, pure sound of the instrument without artifact.

The 100% passive circuitry inside the JDI is incredibly efficient. The transformer performs both high-to-low impedance conversion and signal balancing at the same time with minimal loading and does so without any power whatsoever. The transformer also introduces a magnetic bridge that passes signal while rejecting stray DC voltage. This makes the JDI particularly adept at eliminating hum and buzz caused by ground loops.

Features include input and throughput ¼” connectors, -15dB input pad, ground lift, and 180º degree polarity reverse to help phase align the instrument with the PA. A secondary circuit is added for direct interfacing with high output devices such as guitar or bass amp loudspeakers plus a unique merge function allows stereo sources such as keyboards to be summed mono, saving valuable input channels.


Jensen Transformer equipped passive DI

Eliminates hum and buzz from ground loops

Virtually zero phase & harmonic distortion

Exceptional signal handling and noise rejection


Type: Passive DI

Channels: 1

Inputs: 1 x 1/4″

Outputs: 1 x XLR, 1 x TS thru

Height: 2″

Width: 3.5″

Depth: 5.5″

Weight: 2.2 lbs.
