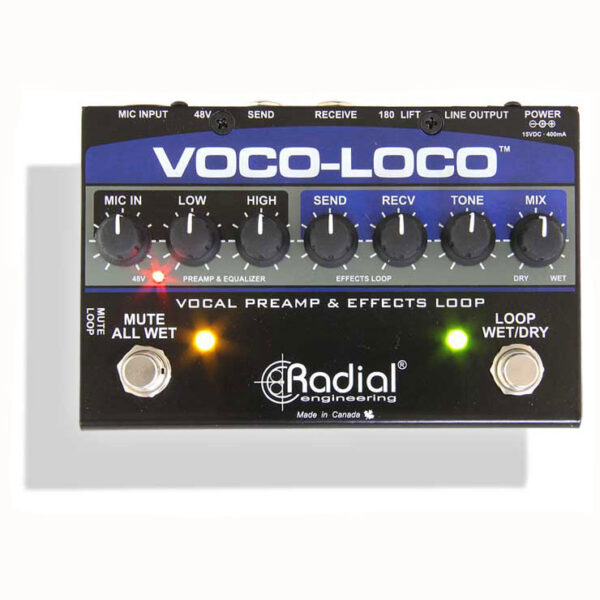

Radial Engineering Voco-Loco foot-controlled effects loop allows you integrate guitar effects pedals into your vocal or acoustic instrument sound. Whether you’re a singer or horn player, it all starts with Voco-Loco’s high-quality mic preamp. 2-band EQ lets you add warmth and shimmer. The signal then goes to your guitar pedals via a transformer-isolated hi-Z effects loop with individual send/receive controls. A tone control on the return path lets you tweak your effects, while the blend control lets you mix the original dry signal with your effects.
Add guitar effects pedals to vocals or instruments
Create exciting and unique effects as you perform
Turn on multiple effects using one footswitch
Works with either dynamic or condenser microphones
Circuit Type: Integrated Op-Amp with Class-A FET input
Frequency Response: 20 Hz to 20 kHz
Total Harmonic Distortion: <0.005%
Dynamic Range: 100 dB
Input & Output:
1 x XLR Input
1 x XLR Output
1 x 1/4″ Send
1 x 1/4″ Receive
Input Impedance: 10 kΩ
Maximum Input: 10 dB
Gain: 52 dB
Clipping Level: Output: 15 dBu
Output Impedance: 300 Ω
Equivalent Input Noise: -120 dBu
Noise Floor: -85 dBu
Distortion: <0.005%
Phase Shift: 8° @ 50 Hz
Common Mode Rejection: -73 dB @ 55 Hz
Input Impedance: FX Loop: 100 K
Output Impedance: FX Loop: 3,000 Ω
Output: Pin 1 ground, Pin 2 (+), Pin 3 (-)
Power:
1x DC Input
15 VDC / 400 mA
Configuration:
XLR:
Follows AES spec: pin-1 ground, pin-2 (+), pin-3 (-)
Dimension (LxWxH): Not specified by manufacturer
Weight: Not specified by manufacturer
