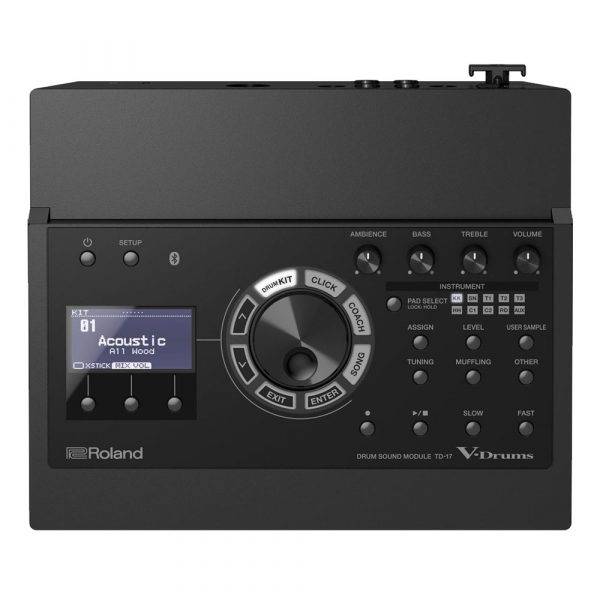

Roland TD-17 Drum Sound Module

Roland TD-17 Drum Sound Module

$799.99
Out of stock
Qty:
SKU: ROLTD17 Category:

Roland TD-17 Sound Module features a sound engine inherited from the TD-50, for pro-quality expressive drum sounds that can faithfully reproduce the playability of acoustic drums. An array of built-in coaching functions will track your technique, measure your progress and increase your motivation. You can play along with your favorite tunes or watch online drum lessons while listening to the audio wirelessly – pairing your smartphone with the TD-17 via Bluetooth, which makes your daily practicing fun. With a host of interactive drumming features, the TD-17 module can help you to become a better drummer, faster.

Item Includes

  • Roland TD-17
  • Sound module mount
  • AC adaptor
  • Special connection cable
  • Owner’s Manual
  • Leaflet “USING THE UNIT SAFELY”
Features

Expressive and dynamic sound inherited from Prismatic Sound modeling technology of the TD-50

High-speed response with wider dynamic range, high-resolution of tonal changes

Authentic hi-hat sound with smooth open-to-closed pedal control, and bow/edge tonal detection

Open and closed rim-shots detected for authentic snare technique

Bluetooth audio for wirelessly streaming audio from your smartphone to the TD-17 module

Coach functions support your daily exercise and warm-up routines

Playback audio files from SD card

Preset drum kits cover a wide range of music genres, with further sound customization possible

Ambience control and variation, to emulate venues from small stages to large halls

Import user samples, assign them to any pad and layer them with internal sounds for deeper customization and creating individual drum sounds

Compatible with “Melodics for V-Drums” to improve your sense of time

2-trigger inputs for additional pads or pedals

USB port for connecting to your computer for music production

Specifications

Drum kits: 100 (Preset: 50)

Instruments: 310

Instrument parameters: Level (Volume), Pan, Tuning, Muffling, Snare Buzz, Strainer

User Sample:
Internal memory size: 32M bytes
Number of user sample: Maximum 100 (includes factory preloaded user samples)
Sound length (total): 24 minutes in mono, 12 minutes in stereo
File format: WAV (44.1 kHz, 16/24 bits)

Kit effect:
Ambience: 25 types
Multi effect: 30 types
Pad equalizer: 3 band (Low, Mid, High), Capable to each pad

Master effect: Equalizer: 2 band (Bass, Treble)

Bluetooth (excluding TD-17-L) *1:
Supported standards: Bluetooth Ver 4.2
Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)

Internal Songs: 7

Song Player: File format: WAV (44.1 kHz, 16/24 bits), MP3 *2

Recorder:
Recording Method: Realtime
Maximum length: 60 min (Temporary recording: 3 min) *3
File format: WAV (44.1 kHz, 16 bits)

Display: 128 x 64 dots graphic type LCD (with backlit)

External memory: SD card (SDHC supported)

Connectors:
TRIGGER INPUT connector: 1 (DB-25 type) (Kick, Snare, Tom1, Tom2, Tom3, Hi-Hat, Crash1, Ride, Ride Bell, Hi-Hat Control)
TRIGGER IN jack: 2 (CRASH 2, AUX) (1/4-inch TRS phone type)
MASTER OUTPUT jack: 2 (L/MONO, R) (stereo 1/4 inch phone type)
PHONES jack: 1 (stereo miniature phone type)
MIX IN jack: 1 (stereo miniature phone type)
MIDI OUT jack: 1
USB COMPUTER jack: 1

Output Impedance:
OUTPUT jack: 1k ohms
PHONES jack: 94 ohms

Input Impedance: MIX IN jack: 11k ohms

USB COMPUTER jack:
Speed: Hi-speed USB
Driver mode: Generic, Vender
Protocol: USB MIDI, USB Audio *4

USB Audio:
Sampling Rate (Original): 44.1 kHz
Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
Record: 2 channels (1 stereo)
Playback: 2 channels (1 stereo)

Power Supply: AC adaptor (DC 9 V)

Current Draw: 490 mA

Dimensions (WxDxH): 8.78 x 7.72 x 2.52″ / 223 x 196 x 64 mm

Weight: 2.0 lb / 0.9 kg
