Description

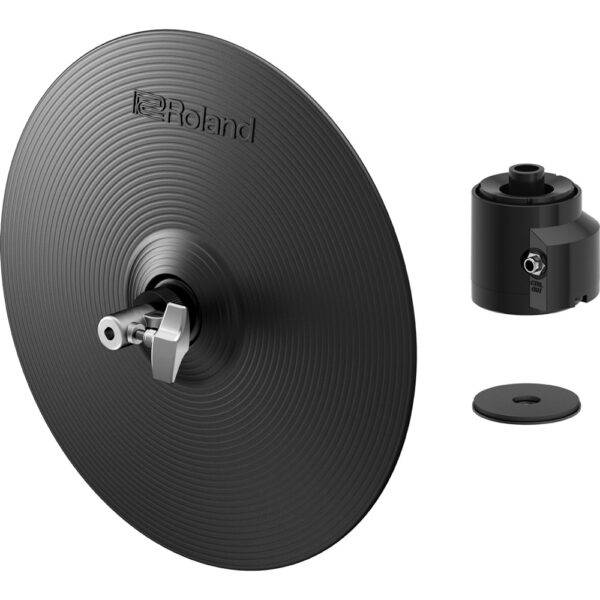

Roland VH-10 V-Hi-Hat features excellent playability, and realistic hi-hat performance. The “floating” design mounts on a standard acoustic hi-hat stand, has a dual trigger cymbal pad, and faithfully recreates every hi-hat nuance. Whether the hi-hat is fully open, closed or any variation in between, the VH-10 responds naturally and accurately. Even hi-hat heel splashes can be played with ease.
Replicates the natural swinging motion of an authentic hi-hat cymbal
Light-weight cymbal, perfect for foot splash techniques and quick pedal control
Differentiate between strikes on the bow and edge
Striking surface uses rubber for silencing
Can be mounted on a traditional acoustic hi-hat stand
Size: 12 inches
Triggers: 2 (Bow, Edge)
Connectors:
TRIGGER OUTPUT jack
CONTROL OUTPUT jack
Acceptable rod diameters: 6.0–7.0 mm (1/4–5/16 inches) (Rod bushes: Max. 11.7 mm (1/2 inches))
Accessories:
Insulating plate
Connection cable x 2
Drum key
Tie with lock
Owner’s Manual
Leaflet “USING THE UNIT SAFELY”
Width (Hi-hat): 314 mm; 12-3/8 inches
Depth (Hi-hat): 314 mm; 12-3/8 inches
Height (Hi-hat): 103 mm; 4-1/16 inches
Weight (Hi-hat): 1.2 kg; 2 lbs 11 oz
Width (Motion sensor unit): 77 mm; 3-1/16 inches
Depth (Motion sensor unit): 74 mm; 2-15/16 inches
Height (Motion sensor unit): 71 mm; 2-13/16 inches
Weight (Motion sensor unit): 0.2kg; 8 oz
