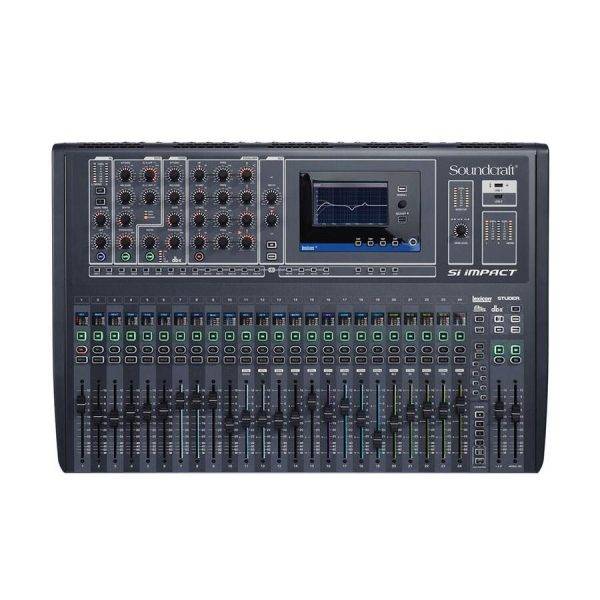

Soundcraft Si Impact provides you with a simplicity & ease of use that rivals an analog console, and you get the excellent sound quality that Soundcraft has become known for over the past 40-plus years. You’ll love the Si Impact’s unique FaderGlow system, which gives you at-a-glance status information, as well as its ample DSP power, great-sounding 32-in/32-out USB audio interface, and generous I/O options. Complete with a 5″ touchscreen display for instant access to your parameters, the Si Impact is an ideal digital mixer for broadcasting, houses of worship, music venues, and theaters.
32 Mic Inputs
8 XLR/1/4″ Combi-jacks for line inputs and instruments
40 DSP input channels (32 mono inputs and 4 stereo channels/returns)
31 Output busses (All with full DSP processing and GEQ)
4-band Fully Parametric EQ on each channel and bus
8 VCAs + 8 Mute groups
26 motorised faders (24 input + LR/Mono)
4 fully customisable Fader Layers
Built-in Stagebox Connectivity
5″ touchscreen display
Multi-Colour LCD Channel Displays on each input fader
4 studio-grade Lexicon Effects engines and dedicated FX busses
BSS Graphic Equalisers on every bus
20 sub-group / aux busses
4 mono/stereo matrix busses
32×32 USB audio interface for multi-track recording and playback
Type: Digital
Channels: 40
Inputs – Mic Preamps: 32 x XLR
Outputs – Main: 16 x XLR
Outputs – Digital: 1 x AES/EBU (XLR)
Data I/O: Ethernet
Computer Connectivity: 2 x USB (Type A), 1 x USB (Type B)
Phantom Power: 32 x Channels
EQ Bands: 4-band
Busses/Groups: 31 x Bus
Faders: 26 x Motorized
Effects: Yes
Dimensions(WxHxD): 29.5 x 6.3 x 19.7″ (160 x 750 x 500 mm)
Weight: 44.1 lb (20.0 kg)
