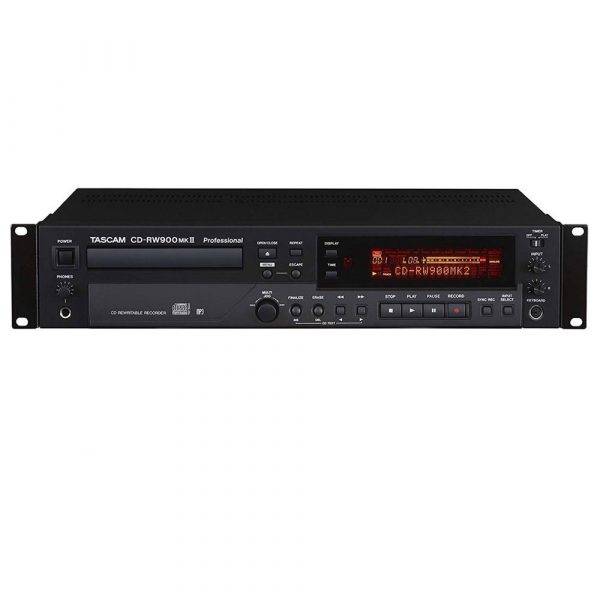

Tascam CD-RW900MKII is a professional CD recorder that replaces the best-selling CD-RW900SL. Tascam CD-RW900MKII will allow you to create polished recordings without constant supervision. The transport also allows gapless recording when writing track markers, something not possible using off-the-shelf PC drives. Various recording features like automatic track creation help the operator create polished recordings without constant supervision. An AKM AK4528VM is used for AD/DA conversion for clean, clear sound quality with a frequency response of 20Hz to 20kHz +/-0.8dB.
Unbalanced analog and S/PDIF coaxial and optical connections are provided for connection flexibility
ISRC/RD codes can be displayed to check recordings in a mastering studio
Key control playback function: (b1 to b6, #1 to #6, half-note increments, for CD-DA)
Shockproof memory prevents skipping due to vibration
Proprietary TEAC tray-loading transport ensures years of reliable operation
AKM codec captures audio with a wide dynamic range for better-sounding CD recording
CD-text editing supports
Trim controls ensure optimal recording levels from both analog and digital sources
Fade-in/Fade-out playback function (OFF, 1 to 30 seconds, 1 seconds increments)
Supported disc types: CD, CD-R, CD-R-DA, CD-RW and CD-RW-DA (High speed CD-RW is supported)
Playback disc formats: CD-DA, CD-ROM ISO9660 LEVEL1/2 Joliet format, multisession discs and
CD text
Playback file formats: CD-DA: 44.1kHz, 16-bit stereo; MP3: 44.1kHz, 64-320kbps, VBR
Recording file formats CD-DA: 44.1kHz, 16-bit stereo
Frequency response:
– 20 Hz – 20 KHz +/-0.8 dB (playback),
– 20 Hz – 20 KHz +/-1.0 dB (recording)
S/N:
– 95 dB (playback)
– 90 dB (recording)
Dynamic range:
– 95 dB (playback)
– 90 dB (recording)
Distortion:
– 0.006 % (playback)
– 0.008 % (recording)
Channel separation:
– 90 dB (playback)
– 80 dB (recording)
Wow and flutter: < 0.001 % (unmeasurable)
Analog inputs:
– Unbalanced RCA pin
– Level -10 dBV +/-2 dB (Full Scale -16 dB)
– Minimum input level -19 dBV (adjustable level at Full Scale -16 dB)
– Input impedance 22 Kohms+/-10% (unbalanced)
Analog outputs:
– Unbalanced RCA pin
– Level -10 dBV +/-2 dB (Full Scale -16 dB)
– Maximum output level +6 dBV +/-2 dB
– Output impedance 200ohms+/-10% (unbalanced)
– Phones output Stereo
Digital input:
– Coaxial RCA pin jack (IEC-60958 Consumer use)
– Optical TOSLINK (IEC-60958 Consumer use)
– Supported input sampling frequencies: 32-48 kHz
Digital output:
– Coaxial RCA pin jack (IEC-60958 Consumer use)
– Optical TOSLINK (IEC-60958 Consumer use)
Keyboard: Mini DIN 6 pin
Power:
– U.S.A./Canada 120 VAC, 60Hz
– U.K./Europe 230 VAC, 50Hz
– Australia 240 VAC, 50Hz
– Power consumption 16 W (U.S.A./Canada)
– 18 W (U.K./Europe/Australia)
Dimensions: (d x w x h) 309 x 482.6 x 94 (mm)/ 12.2 x 19.0 x 3.7 (in)
Weight: 4.3 kg (9.5 lb)
