Description

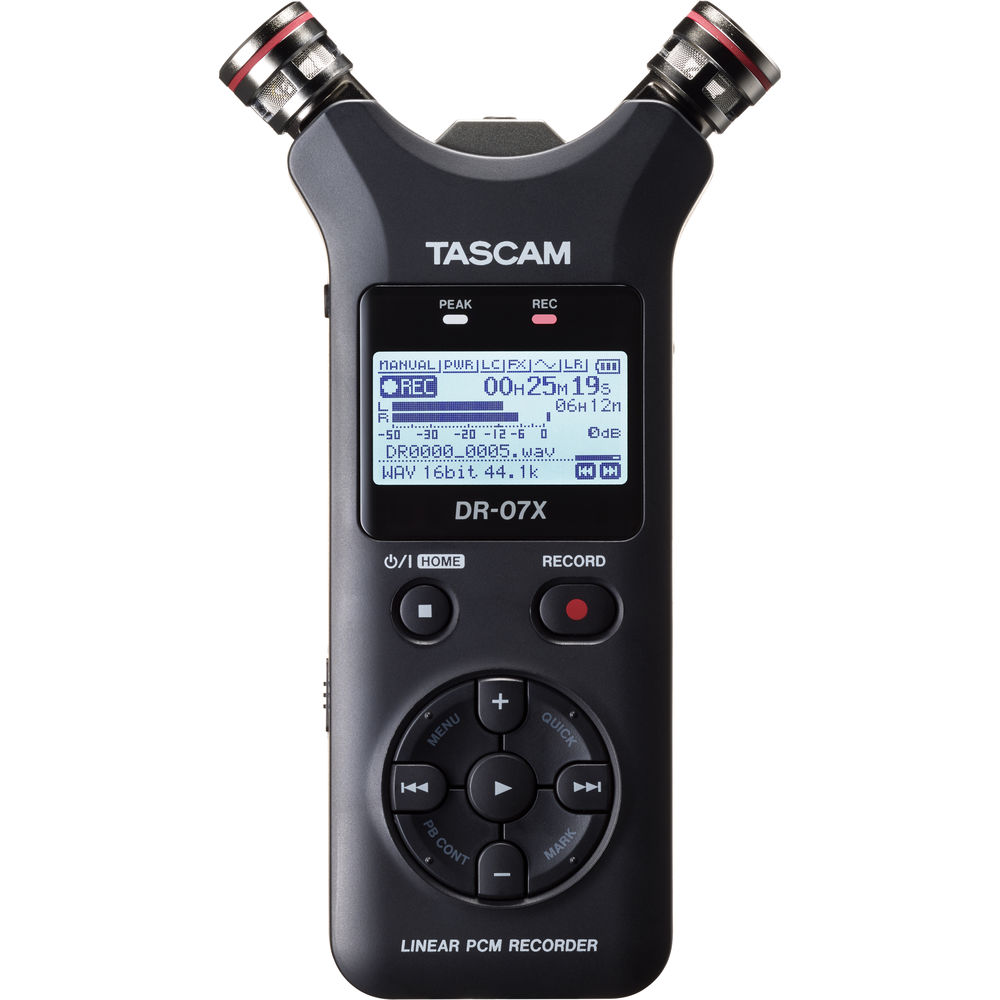

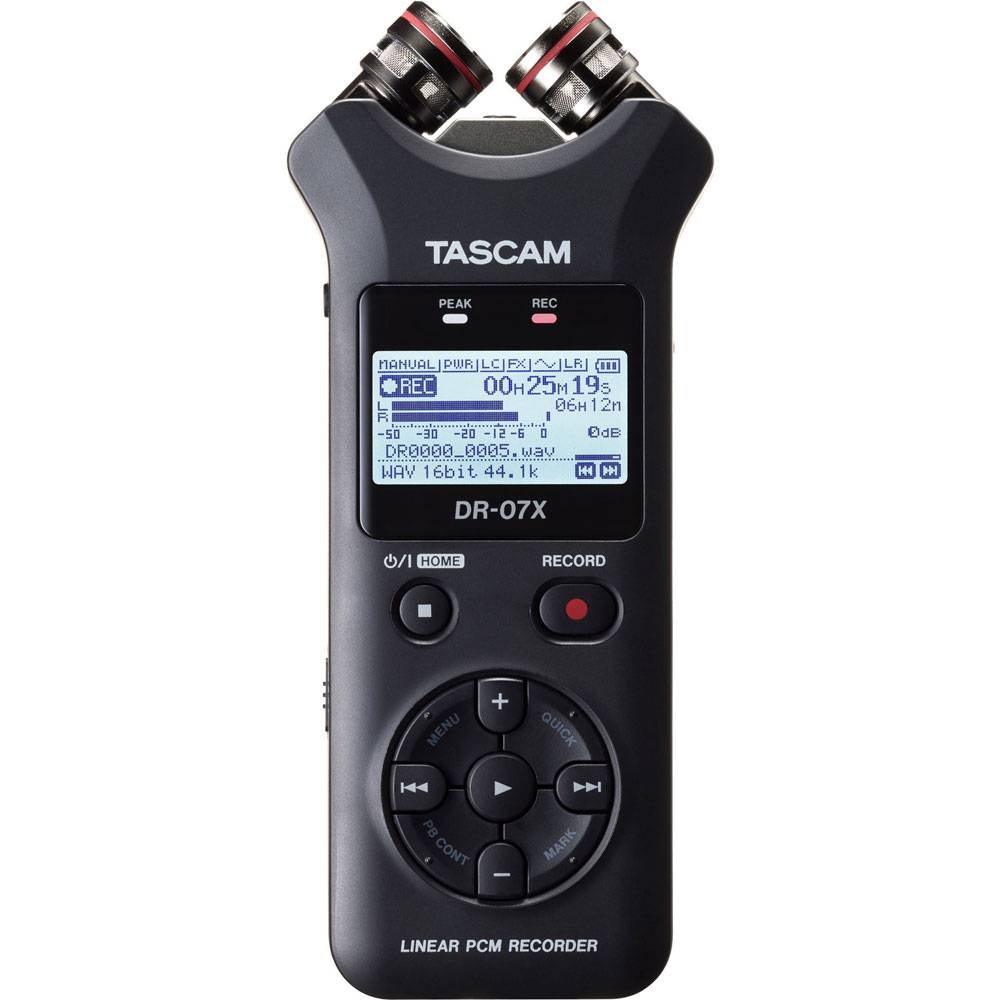

Tascam DR-07X
Tascam DR-07Xportable handheld recorder is capable of capturing two tracks of high-resolution audio with no external microphones required. Its onboard unidirectional condenser mics can be set in an A-B position for a spacious stereo effect or in an X-Y position for a tight stereo image with minimal phase differences.Equally adept as a handheld device or in stand- or camera-mounted setups, the DR-07X can handle anything from sampling sessions and recitals to interviews and podcasts.
Key Features
- Integrated 2-In/2-Out USB audio interface for PC or Mac recording, podcasting
- Variable X/Y or A/B mic configurations
- Overwrite function for punch-in replacement recording, with one level of Undo
- Dictation mode to instantly incrementally jump back playback including speed control and a special dictation EQ
- Auto Recording function starts recording when sound level is detected
Tascam DR-07X Specification
Portable Recorder
Max Sample Rate/Resolution 96 kHz / 24-Bit
Built-In Speaker Yes, 0.3 W Mono
Display Monochrome LCD (Backlit)
Recording
Audio File Formats BWF, MP3, WAV
Bit Depth 16/24-Bit
Signal Processing Auto Gain, EQ, Limiter, Low-Cut Filter, Reverb
Connectivity
Plug-In Power Yes
Host Connection 1 x Micro-USB
Performance
Headphone Output Power 20 mW per Channel into 32 Ohms
THD ≤0.05%
Microphone Max SPL 125 dB SPL
Power
Power Options Batteries, USB Bus Power, AC/DC Power Adapter
Battery Type 2 x AA
AC/DC Power Adapter VDC Not Included
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Physical
Mounting Options 1/4″-20 Female
Operating Temperature 32 to 104°F / 0 to 40°C
Weight 4.6 oz / 130.0 g (Without Batteries),6.0 oz / 171.0 g (With Batteries)
