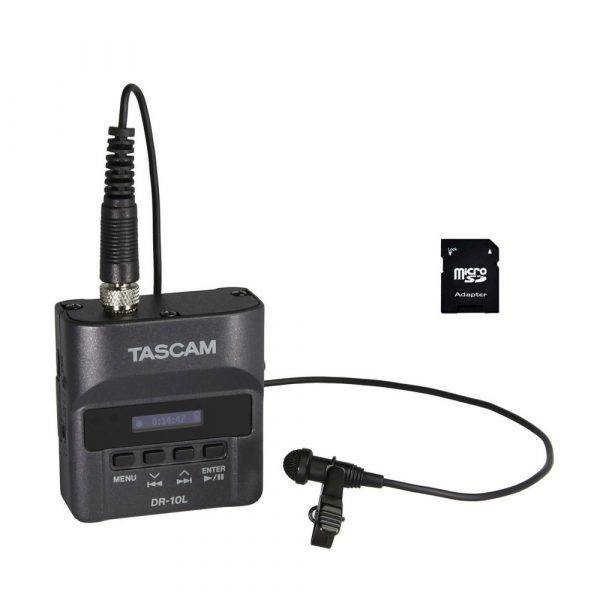

Tascam DR-10L Digital Audio Recorder w/ Lavalier Mic & 32gb Card

Tascam DR-10L Digital Audio Recorder w/ Lavalier Mic & 32gb Card

Out of stock

Tascam DR-10L Digital Audio Recorder comes with its own Lavalier microphone. If you prefer to use a different microphone, the DR-10L’s screw-down locking connector is compatible with most Sennheiser lavalier mics.

The DR-10L records in 24-bit mono and 48 kHz BWAV (Broadcast Wav) file format. It also records up to 32GB on microSD or microSDHC media. There is a 1/8″ headphone-output jack for monitoring of recordings and the recorder runs on a single AAA battery, which lasts for up to 10 hours.


44.1kHz/48kHz, 16/24-bit linear PCM mono/poly recording

Supports WAV format (compatible with BWF format)

Media: microSD/SDHC cards (supports 32GB capacities)

Lavalier microphone with microphone clip and windscreen included (cable length: 160cm)

Sliding record switch and hold function to prevent misoperation during recording

Dual recording function

Automatic file closing function to prevent the loss of already recorded data

Low/Mid Low/Mid/High/High plus recording level settings

Low-cut filter


Automatic level function

Built-in clock function, supports BWF files with included time information – convenient for editing and searching

Time track incrementing function can create new files at regular intervals (about every 15 minutes) during recording

Playback function allows recorded data to be checked immediately

Headphone output

Easy-to-read organic EL display

micro USB B port enables easy data exchange with computers

Records at least 10 hours on a single AAA battery * using alkaline batteries (EVOLTA)

Unit settings can be created as a computer text file

Firmware can be updated using a microSD card

Belt clip included

Custom case for storing the unit and accessories included

RoHS-compliant product


Recording Media:

microSD card (64 MB to 2 GB)

microSDHC card (4 GB to 32 GB)

Recording Format: WAV (BWF)

Sampling Frequency: 44.1 kHz, 48 kHz

Bit Depth: 24-bit

Analog Audio Inputs: 1/8″ (3.5 mm) TRS mini jack with screw-down lock

Mic Input Gain: Low / Mid Low / Mid / High / High+

Maximum Sound Pressure Level (SPL): 115 dB SPL

Maximum Input Level: -15 dBu (gain L)

Minimum Input Level: -55 dBu (gain H+)

Mic Input Gain: +14 dB to +38 dB

Input Impedance: 33 kOhms (mic bias off) / 2 kOhms (mic bias on)

Headphone Output: 1/8″ (3.5 mm) mini jack

USB Connector: micro-USB Type-B

Protocol: USB 2.0

Battery Type: 1 x AAA battery (alkaline battery/ Ni-MH battery / lithium battery), and USB bus power

Battery Operating Time

WAV, 24-bit / 48 kHz Rec, without headphones, limiter: OFF, Dual Rec: OFF, JEITA Rec

Alkaline Battery: approximately 10 hours

Ni-MH Battery: approximately 8 hours

Lithium Battery: approximately 15.5 hours

Power Consumption: 0.45 W

Battery: Real Time Clock: 1 x lithium (built-in with soldering)

Dimensions (WxHxD): 2.0 x 2.2 x 1.0″ (52.0 x 55.6 x 24.4 mm)

2.2 oz (63 g) including battery
1.79 oz (51 g) without battery
