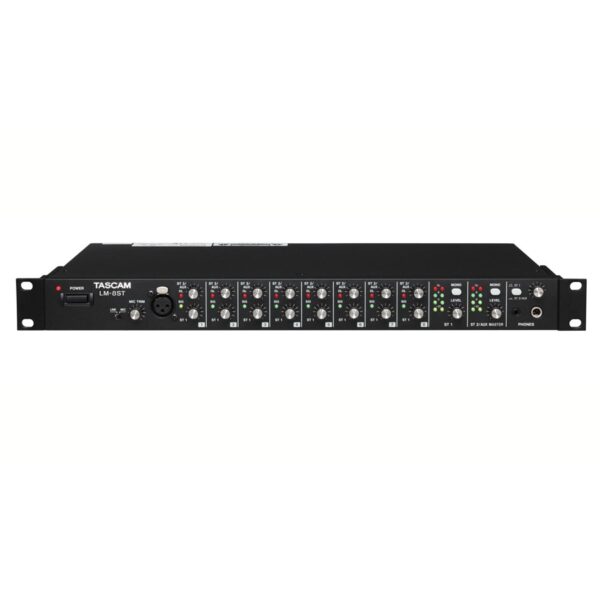

TASCAM LM-8ST 1-space rackmountable line mixer comes with Power cord, Rackmounting screw kit, and Owner’s manual (with warranty). Packed with high-quality audio components, the LM-8ST is perfect for any live performance or installation.
This line mixer gives 8 stereo channels. 8 pairs of balanced 1/4″ TRS inputs – switchable from +4 or -10dB. A pair of balanced XLR outputs are provided, the second of which has pre or post-fader bussing.
8 stereo channel / 4-buss line mixer
8 stereo 1/4″ TRS balanced inputs with –10/+4dB switch
1U rack mountable
Mic input with trim control on front panel
2-segment LED meter per channel
ST1 and ST2/AUX level control per channel
ST1 and ST2/AUX master level controls
Each channel switchable to ST2 (pre fader) or AUX (post) output
1/4″ and 1/8″ stereo headphone outputs
XLR balanced ouptuts for ST1 and ST2/AUX
Stereo balanced buss output/input for cascade
Ground lift switch and terminal
Power: AC 100 – 240V, 50/60Hz
Power consumption: 15W
Dimensions (W×H×D:) 19.0″ × 1.73″ × 11.0″ / 482 × 44 × 280 mm
Weight: 8.4 lbs. / 3.8 kg
