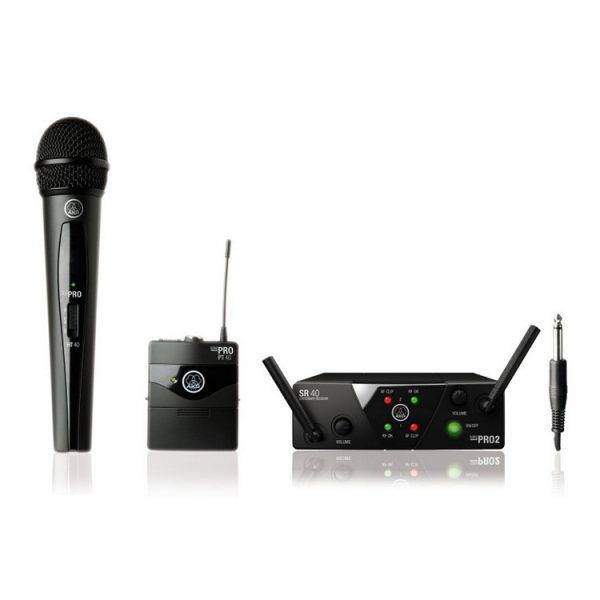

AKG WMS40 Mini2 Vocal & Instrumental Set includes the SR 40 mini2 receiver, PT 40 mini bodypack transmitter, HT 40 mini handheld transmitter, and MKG L instrument cable.
The SR40 mini2 receiver provides three status LEDs each for channels 1 and 2, indicating ON/OFF status, received signal strength (RF OK), and audio clipping (AF CLIP). The VOLUME control sets the level at the ¼” output jack. Each receiver comes with a universal 12-V switched mode power supply with EU, UK, and US adapters. The illuminated ON/OFF button switches both channels on and off simultaneously.
The PT40 mini bodypack is probably the smallest and lightest transmitter in its class. A reliable mini XLR input allows you to connect every compatible AKG miniature microphone.
The rugged HT40 mini handheld transmitter features an ON/OFF/MUTE switch and a sturdy wire-mesh cap protecting the cardioid dynamic microphone element. Battery life is the same legendary 30 hours off a single AA battery as for the standard WMS40 models, reducing the need to replace batteries and thus saving real money in the long run.
Item Includes
- SR 40 Mini2 receiver
- PT 40 Mini bodypack transmitter
- HT 40 Mini handheld transmitter
- MKG L instrument cable
- Universal power supply with US/UK/EU adapters
SR40 Mini2 Receiver
Crystal clear sound
for best audio quality
Up and running in a second
plug and play solution for easy setup
Switched mode power supply
universal connector kit for worldwide use
Ultra compact metal housing
rugged and lightweight
PT40 Mini Handheld transmitter
Unbelievable 30 hours life with a single AA battery
lowest operating cost in its class
Professional three-pin mini XLR connector
compatible with guitar cables, headset- and instrument mics
Gain control on transmitter
for immediate volume adjustment
Noiseless on/off/mute switch
to protect the connected speakers
Compact and rugged body-pack design
for maximum wearing comfort
HT40 Mini Handheld Transmitter
High Definition Audio Performance technology
for crystal clear audio quality
Cardioid polar pattern
for trouble-free use on narrow stages
Robust spring steel grille
extreme ruggedness for long stage life
Noiseless on/off/mute switch
to protect the connected speakers
Unbelievable 30 hours of working time with one AA battery
saves money in day-to-day use
SR40 Mini2 Receiver
Audio
Audio Frequency bandwidth: 40 to 20000 Hz
Signal to Noise: 110 dB-A
THD at 1 kHz: 0.8 Prozent
Enhanced
Operating temperature range: -10 to 55 Celsius
Radio Sensitivity: -100 dBm
Radio
Recommended simultaneous channels: 3
Number of selectable frequencies: 1 Fixed frequency
Frequency Selection: Fixed frequency
Wireless channels within device :-
Radio Range (Line of Sight): 20m
Switchable RF Power: no
Modulation: FM
Encryption: No encryption
Pilot Tone: no
General
Transmitter Synchronization: Manual
HiQnet compatible: No
Racksize: 1/3 Racksize (19″)
Rackheight: 1 RU
Antenna Interface
Amount: 1
Type: External Antenna fixed
Audio Outputs 1
Amount: 2
Type: Unsymetrischer Klinkenstecker (6,3mm)
Gender: Female
Contacts: 3-pin
Note: Unbalanced audio output level, adjustable at rated deviation: 500 mV
Powering Interface
Internal Power Supply: no
Type: DC Socket
Voltage: 12 to 12 V
Design
Body: Metall
Finish: black
Dimensions
Length: 132 mm
Height: 43 mm
Width: 133 mm
Net Weight: 581 g
PT40 Mini Transmitter
Audio
Audio Frequency bandwidth: 40 to 20000 Hz
Signal to Noise: 110 dB-A
THD at 1 kHz: 0.8 Prozent
Enhanced
Peak deviation: 45 kHz
Pocket Transmitter
Nominal deviation: 15 kHz
Radio Output Power (min/max):10 mW
Transmitter Synchronization: Manual
Audio Input
Type: Mini XLR
Gender: Female
Contacts: 3-pin
Maximum audio level: 12 dB
Battery 1
Batterietype: LR6 AA alkaline battery
Number of Batteries: 1
Operating Time: 30 h
Battery 2
Number of Batteries: 1
Operating Time: 30 h
Battery 3
Number of Batteries: 1
Operating Time: 30 h
Design
Body: Plastic
Finish: black
Dimensions
Length: 60 mm
Height: 75.5 mm
Width: 30 mm
Radio
Recommended simultaneous channels: 3
Number of selectable frequencies: 1 Fixed frequency
Frequency Selection: Fixed frequency
Wireless channels within device: –
Radio Range (Line of Sight): 20m
Switchable RF Power: no
Modulation: FM
Encryption: No encryption
Pilot Tone: no
HT40 Mini Transmitter
Audio
Audio Frequency bandwidth: 40 to 20000 Hz
Signal to Noise: 110 dB-A
THD at 1 kHz: 0.8 Prozent
Enhanced
Operating temperature range: -10 to 55 Celsius
Peak deviation: 45 kHz
Radio
Recommended simultaneous channels: 3
Number of selectable frequencies: 1 Fixed frequency
Frequency Selection: Fixed frequency
Wireless channels within device –
Radio Range (Line of Sight): 20m
Switchable RF Power: no
Modulation: FM
Encryption: No encryption
Pilot Tone: no
Transmitter
Nominal deviation: 15 kHz
Radio Output Power (min/max): 10 mW
Microphone head versions: P5
Interchangeable Microphone Head: no
Transmitter Synchronization: Manual
Battery 1
Batterietype: LR6 AA alkaline battery
Number of Batteries: 1
Operating Time: 30 h
Battery 2
Batterietype: HR 6 AA (NiHM) rechargeable battery
Number of Batteries: 1
Operating Time: 30 h
Battery 3
Batterietype: FR 6 AA lithium battery
Number of Batteries: 1
Operating Time: 30 h
Design
Body: Plastic
Finish: black
Dimensions / Weight
Height: 230 mm
Width: 51 mm
Net Weight: 195 g
