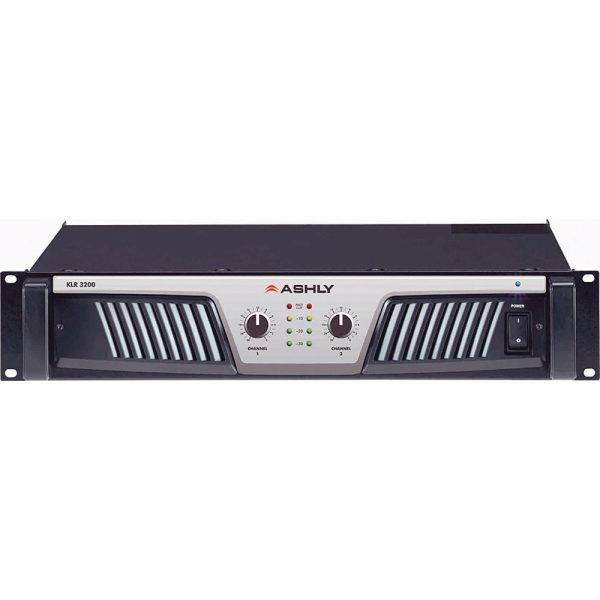

Ashly KLR-3200 Power Amp 2 x (1,600W @ 2) (1,100W @ 4) (650W @ 8) Ohms

Ashly KLR-3200 Power Amp 2 x (1,600W @ 2) (1,100W @ 4) (650W @ 8) Ohms

Out of stock
SKU: ASHKLR3200 Category:

Ashly KLR-3200 is lightweight, high-performance amplifier incorporating the latest technologies delivering quality and value at an affordable price. Whether your application is professional audio or fixed performance installation, the KLR-3200 is optimized to provide
reliable audio performance with sonic perfection.

The KLR-3200 is optimized to deliver high levels of sustained power, extraordinary
audio performance, and road-proven reliability into 2, 4, or 8 Ohm loads and are housed in a a uniform, rugged 2RU chassis. The KLR-2000 uses a switch mode power supply which assures you of flawless lows, punchy mids and pristine highs. The output topology of the KLR-3200 is a 2-step Class-H design.


Rated for 2 Ohms operation

Balanced inputs via 3-pin Euroblock

Combo XLR/TRS connectors

Neutrik® speakON® type output connectors

Switch-mode power supply with extensive protection circuitry

On/off limiter switch

Forced-air cooled (front-in, rear-out)

Removable dust filters, easy to clean

Front-mounted attenuators

Removable amp handles for permanent installation

Optional locking front panel volume knobs

Safety/Compliance: cCSAus, CE, FCC, RoHS


requency Response (1W @ 8 Ohms):

20Hz–20kHz (+0.3dB)
5Hz–70kHz (-3dB down point)

Damping Factor: >380 (100Hz @ rated power @ 8 Ohms)

THD (20Hz–20kHz):
10dB below rated output
@ 4 Ohms <0.05%

Input Impedance: 12k Ohm, balanced

Max Input Level: +21dBU

HPF: 30Hz, 50Hz, Off (12dB/Oct)

Amplifier Protection:
Output Overcurrent, DC Output,
Chassis Temperature, Mains Breaker (KLR-5000 uses internal Mains fuse)

Operating Temp/Humidity: -10C to +40C/Humidity: 0% to 90%

Front Panel

Airflow/Cooling: Front-to-Rear, Variable Speed Fan

Front Panel Indicators: Protection/Clip, Signal, Power

Attenuators: Front Panel (each channel)

Rear Panel

Input Connectors (each Ch): 3-pin Euroblock, XLR, ¼” TRS Phone Jack

Output Connectors: 4-pin SpeakON® type (each channel)

Power Cable Connector: 3-prong NEMA 5–15, 5–20 for KLR-5000

Weights, Dimensions & Power

Dimensions: 19 W x 3.5 H x 16″ D (482 x 88 x 407mm)

Weight: 26.4lbs (12kg)

Power Requirements: 120VAC or 240VAC, ±10% (factory set) 50–60Hz
