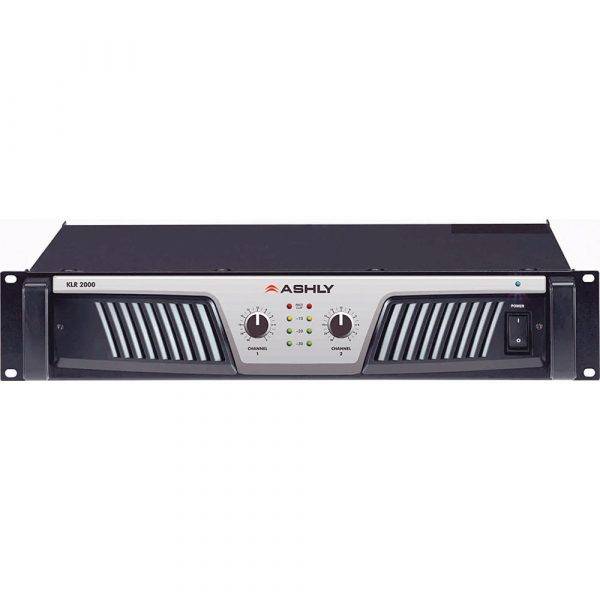

Ashly KLR-2000 has a 2RU rackmount design for installation in any equipment rack. It can operate in stereo, bridged, or parallel modes for terrific versatility. The Class-AB circuitry provides excellent efficiency, while the switch mode power supply delivers deep bass, punchy midrange, and clear treble. The amplifier has Euroblock and combo XLR/TRS inputs, as well as Neutrik Speakon outputs, allowing you to connect to virtually any professional sound system.
The amplifier features front panel level controls for each channel, as well as indicator LEDs for output level, clip/protect, and power on/off. Each channel has a 3-position gain switch, as well as a 3-position high pass filter switch. A switchable limiter is also built in to prevent distortion. A forced air cooling system with front-to-rear air flow and removable dust filters prevents the amplifier components from overheating. Integrated protection circuitry prevents damage from over-current, DC output, and overheating.
Compact 2RU rackmount design for installation in any standard equipment rack
Switchable stereo, bridged, and parallel modes for terrific versatility
Class-AB circuitry provides excellent efficiency
Switch mode power supply delivers deep bass, punchy midrange, and clear treble with excellent power efficiency and low weight
Euroblock and combo XLR/TRS inputs, along with Neutrik Speakon outputs allow you to connect to virtually any professional sound system
Front panel level controls for each channel
Indicator LEDs for output level, clip/protect, and power on/off
Each channel has a 3-position gain switch
3-position high pass filter switch lets you reduce low-frequency rumble and hum
Switchable limiter prevents distortion
Forced air cooling system with front-to-rear air flow and removable dust filters prevents the amplifier components from overheating and keeps them clean
Integrated protection circuitry prevents damage from over-current, DC output, and overheating
Permanently-attached power cord
Power Rating:
350W/Channel @ 8 Ohms Stereo
600W/Channel @ 4 Ohms Stereo
1000W/Channel @ 2 Ohms Stereo
2000W @ 4 Ohms Bridged Mono
Damping Factor: > 380
Input Sensitivity: Not Specified by Manufacturer
Input Impedance: 12 kOhms, Balanced
Gain: 31dB
Frequency Response: 20Hz – 20kHz
Signal-to-Noise Ratio: > 108dB
Total Harmonic Distortion (THD): < 0.05%
Connectors:
2 x 3-Pin Eurblock Inputs
2 x XLR/TRS Combo Inputs
2 x Neutrik Speakon Outputs
Controls and Indicators:
2 x Level Control Knobs
2 x 3-Position Gain Switches
1 x 3-Position Mode Switch
1 x 3-Position HPF Switch
1 x Limiter Switch
1 x On/Off Switch
LEDs for Level, Clip/Protect, and Power
Cooling: Variable Speed Fan, Front-to-Rear Airflow, Removable Dust Filters
Power Consumption: 0.99A, Idle
Power: Permanently-Attached 3-Prong IEC Cable
Operating Temperature:
14 to 104°F (-10 to +40°C)
Humidity: 0 to 90%
Protection: Output Over-current, DC Output, Chassis Temperature, Mains Breaker
Dimensions (WxHxD): 19 x 3.5 x 16″ (482 x 88 x 407mm)
Weight: 26.2lbs (11.9kg)
