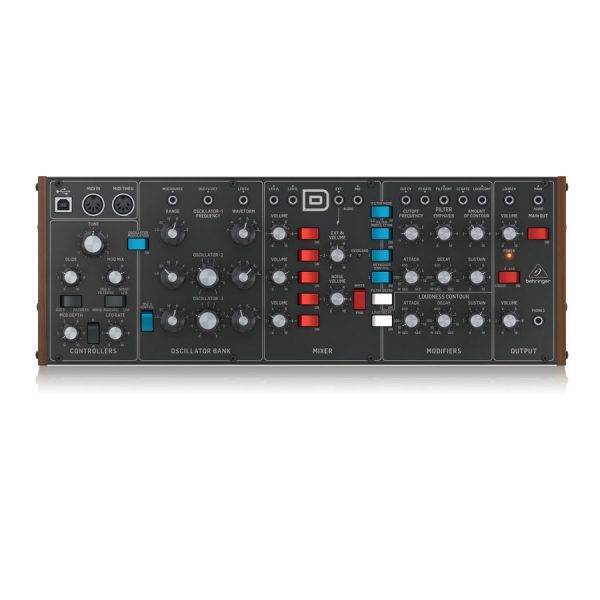

Behringer Model D Legendary Analog Synthesizer

Behringer Model D Legendary Analog Synthesizer

Out of stock

Behringer Model D is outfitted with incredible features and has a rich analog sound, just like Like the original. It differs from the original in its Eurorack design – a design that removes the keyboard feature, increasing portability. In its place, the synth can be connected to and controlled by any number of synth controllers or USB devices via a USB-MIDI port.


Legendary analog synthesizer with triple VCO design allows for insanely fat music creation

Authentic reproduction of original “D Type” circuitry with matched transistors and JFETs

Ultra-high precision 0.1% Thin Film resistors and Polyphenylene Sulphide capacitors

Pure analog signal path based on authentic VCO, VCF and VCA designs

5 variable oscillator shapes with variable pulse widths for ultimate sounds

Classic 24 dB ladder filter with resonance for legendary sound performance

Switchable low/high pass filter mode for enhanced sound creation

Dedicated and fully analog triangle/square wave LFO

16-voice Poly Chain allows combining multiple synthesizers for up to 16 voice polyphony

Semi-modular design requires no patching for immediate performance

Overdrive circuit adds insane spice and edge to your sounds

Noise generator dramatically expands waveform generation

Complete Eurorack solution – main module can be transferred to a standard Eurorack case

48 controls give you direct and real-time access to all important parameters

External audio input for processing external sound sources

Low and high level outputs featuring highest signal integrity signal stages

Comprehensive MIDI implementation with MIDI channel and Voice Priority selection


Type: Eurorack Compatible Synthesizer

Analog/Digital: Analog

Polyphony: Mono

Oscillators: 3 x VCO, Noise Generator

LFO: Triangle, Square wave

Filter: 1 x VCF 24dB, low-pass/high-pass

Effects Types: Overdrive circuit

Analog Inputs: 1 x 1/8″ (external audio)

Analog Outputs: 2 x 1/4″ (main out low, high), 1 x 1/8″ (main out), 1 x 1/8″ (mix audio out), 1 x 1/8″ (headphones)


Other I/O: Mod Source, OSC 1V/OCT, LFO CV, LFO square, LFO sawtooth, Cut CV, FC Gate, Filter, LC Gate, Loud contour, Loud CV

USB: 1 x Type B

Power Supply: 12V DC power supply (included)

Dimensions (HxWxD): 3.5 x 14.7 x 5.4″ / 90.0 x 374.0 x 136.0 mm

Weight: 3.7 lb / 1.7 kg
