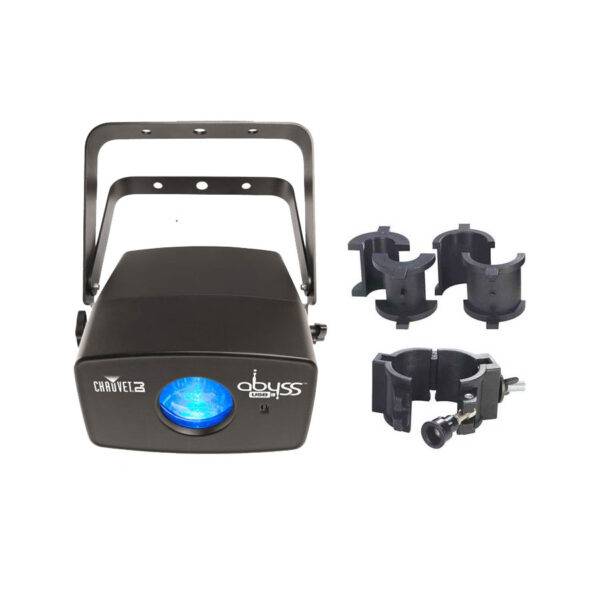

Chauvet Abyss USB LED Flowing Water Lighting Effect with CLP-10 Clamp

Chauvet Abyss USB LED Flowing Water Lighting Effect with CLP-10 Clamp


Out of stock

snap finance


Chauvet Abyss USB provides dazzling lighting effect of stage performance which creating cool authentic and wonderful lighting experience. It adopts latest modern and revolutionary technology features highly efficient LED light and practically defines wireless versatility. While the Abyss USB includes standard DMX to control its independent dichroic color wheel and glass effects wheels. It tap your passion and you’re going to love the Chauvet Abyss USB which is absolutely your number1 choice.

The Abyss USB can simulate a multi-colored water effect that shines through a wide variety of environments using high-power LEDs. It can be controlled wirelessly using master/slave technology or DMX and is D-Fi USB compatible. A dichroic color wheel and two glass effect wheels are independently controllable, enabling you to expand your design options. Non-DMX control is also available in stand-alone mode from the digital display or a separately available IRC-6 remote control. The Abyss USB LED Light can be power linked to multiple units, minimizing the number of cables and extension cords needed for a full setup.

A classic flowing-water lighting effect powered by LED technology. Independent dichroic color wheel and glass effects wheels offer a variety of effects.Automated functions accessible via LCD panel or optional IRC-6 wireless remote.DMX control provides easy integration into your lighting rig. D-Fi USB compatibility provides wireless DMX accessibility.Master/slave chaining lets you easily create sophisticated multi-fixture setups. Wide 59-degree spread covers a broad area with or without fog.

Chauvet CLP-10 wraps completely around the truss section for added security and stability and includes removable adaptors to fit different sizes of truss.


Chauvet Abyss

  • Eye-catching, LED effect light simulates a multicolored water effect
  • D-Fi USB compatibility for wireless Master/Slave or DMX control
  • Shines through any environment with or without fog using upgraded, high-power LEDs
  • Achieve optimal projection and effects using 1 dichroic color wheel and 2 glass effect wheels
  • Increase design options with independent control of effect and color wheels
  • Access non-DMX control in Standalone mode from digital display and IRC-6
  • Save time running cables and extension cords by power linking multiple units
  • Fits best in the CHS-40 Gear Bag

Chauvet CLP-10

  • Includes removable adaptors to fit different sizes of truss
  • Wraps completely around truss for added security and stability
  • Made of ABS plastic which won’t scuff, scratch or dent truss

Chauvet Abyss

  • DMX Channels: 3
  • DMX Connectors: 3-pin XLR
  • Colors: 5 + White; rainbow scroll
  • Light Source: 1 x LED (cool white).Power: 30 W (7 A).Life expectancy: 50,000 hrs
  • PWM: Frequency: 1,200 Hz
  • Coverage Angle: 59 Degree
  • Illuminance: 715 lux at 2m
  • Power Linking: 14 units at 120 V.27 units at 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 38W, 0.5A at120V, 60Hz(65VA).37W, 0.3A at 230V, 50Hz(67VA)
  • Breaker Size: T 1 A,250 V
  • Approvals: CE
  • Optional Controllers: IRC-6
  • Dimensions: 7.7 x 9.0 x 9.7″ (19.6 x 22.9 x 24.6cm)
  • Weight: 5.8 lb (2.6kg)

Chauvet CLP-10

  • Weight: 1.5 lb (0.6 kg)
  • Dimensions: 6 x 3.5 x 5 in (152 x 89 x 127 mm)
  • Load Capacity: 75 lb (33.5 kg)

Additional information

Weight 14 lbs
