Manley Gold Reference Microphone (Mono) gives you a wide frequency response and accurate transient performance without coloration or any perceivable sonic signature. Its designed application is to capture truly accurate musical recordings. The Gold Reference features a 1″ gold sputtered diaphragm that is 5 microns thick and has the ability to withstand sound pressure levels up to 150 dB. The open weave stainless-steel grill allows the capsule to capture signals with zero-loss acoustical transmission, which translates to less dampening of high frequency content.
The electronics of the Gold Reference include two triodes in cascade forming an entire gain-block. The dual-triode 12AT7 tube is easily obtainable and was chosen for its high gain and low noise properties. The audio signal and power connect from the microphone to the filtered B+ power supply via single 30′ 6-pin XLR cable. The audio output exits the power supply via 3-pin XLR through a custom-wound output transformer, which employs nickel laminations and “hum-bucking” bifilar windings, all encased in mu-metal. The continuously variable multi-pattern control offers Omni, Cardioid, and Figure 8 patterns with the ability to dial in a desired proximity effect.

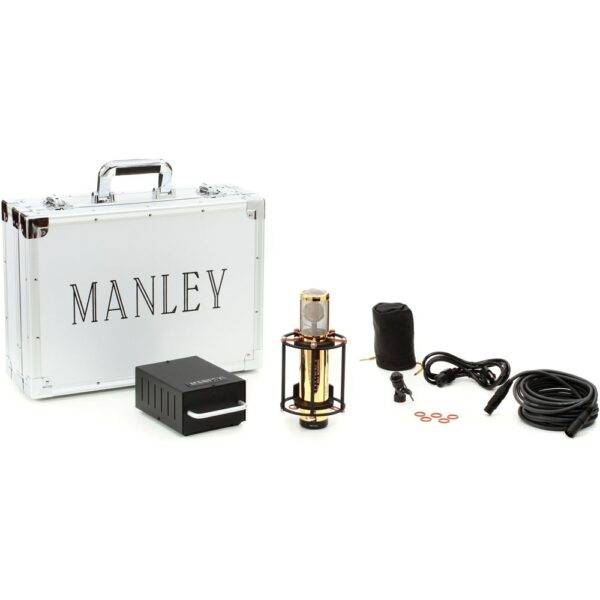

The mic’s body is machined from brass, which provides excellent shielding properties. The casing is polished to high luster and plated with 24 karat gold. The proprietary suspension system is attached directly to the casing, while the capsule itself is mounted to a neoprene-rubber shock-mount to prevent unwanted vibrations from being picked up by the diaphragm. Handmade in the USA, the Gold Reference ships with a leather capsule cover, locking carrying case, and IEC power cable.
1.0″ diaphragm
Open weave stainless-steel grille for zero-loss acoustical transmission
Neoprene-rubber shockmount
All Tube Design with 12AT7 dual triode
-10 dB pad
150 dB maximum SPL
Power Supply: Filtered B+, regulated heater voltages
30′ 6-pin XLR power cable
Hand-wound output transformer with nickel laminations and mu-metal casing
Precision suspension system
Leather capsule protector
Locking carrying case
Diaphragm: 1.0″ (25.40 mm)
Tube: Yes
Polar Pattern: Cardioid, Figure 8, Omnidirectional
Frequency Range: 10 Hz to 30 kHz
Maximum SPL: 150 dB SPL
Impedance: 200 ohms
Sensitivity: 17 mV/PA
Power Requirements: 100 to 240 VAC, 50/60 Hz
Pad: Yes, 10 dB
Output Connectors: 3-Pin XLR
Operating Current Consumption: 70 mA
Length: 9.7″ (246.38 mm)
Diameter: 4.5″ (114.30 mm)
Weight: 2.25 lb (1.02 kg)
