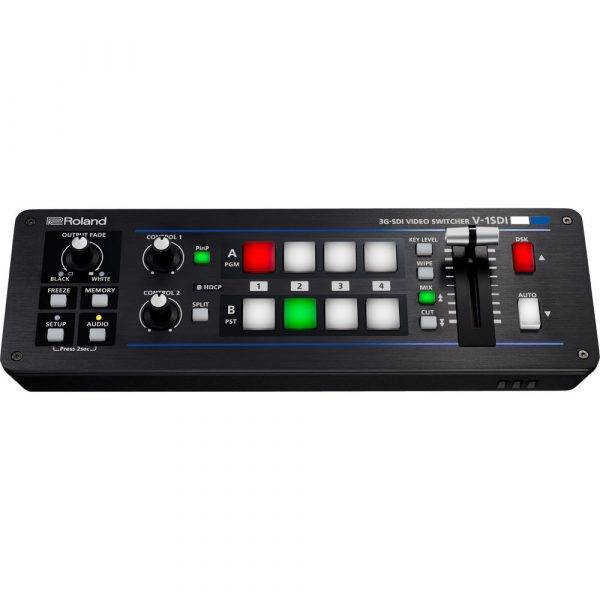

Roland V-1SDI 3G-SDI Video Switcher

Roland V-1SDI 3G-SDI Video Switcher

Out of stock
SKU: ROLV1SDI Category:

Roland V-1SDI video switcher is flexible and versatile that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources including cameras, smart phones, computers, tablets, Blu-ray players.

Compact and portable, the V-1SDI delivers professional switching results with its easy to use hardware interface complete with T-Fader and easy-to-see backlit buttons.

With support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI making this compact solution suitable for events and applications in even large spaces with the most professional level of SDI camera sources.

Item Includes

  • Roland V-1SDI 3G-SDI Video Switcher
  • AC Adapter
  • Power Cord
  • Cord Hook

Compact 4-channel video switcher for professional applications

Perfect for mobile rigs, installs, and live video mixing

Supports SDI and HDMI sources and up to 1080p output

Easy-to-operate hardware controls include essential visual feedback

Add any HDMI display for quad input monitoring with labels and metering

Composition effects include chroma and luminance keying plus picture-in-picture

Full 14-channel audio mixer with adjustable sync delay and microphone input onboard

Access advanced controls via the V-1SDI RCS software for Mac and Windows PCs

Connect an optional hardware remote via the RS-232 serial connection


Type: Video Switcher

Channels: 4

Video Inputs: 3 x SDI, 2 x HDMI

Video Outputs: 2 x SDI, 1 x HDMI

Other I/O: RS-232C, USB Type B

Audio Inputs: 2 x RCA, 1 x 1/8″ (mic)

Audio Outputs: 2 x RCA, 1 x 1/8″ (headphones)

Dimensions (H x W x D): 12.3 x 4.3 x 2.3″ / 31.3 x 10.8 x 5.9 cm

Weight: 2.6 lb / 1.2 kg (excluding AC adapter)
