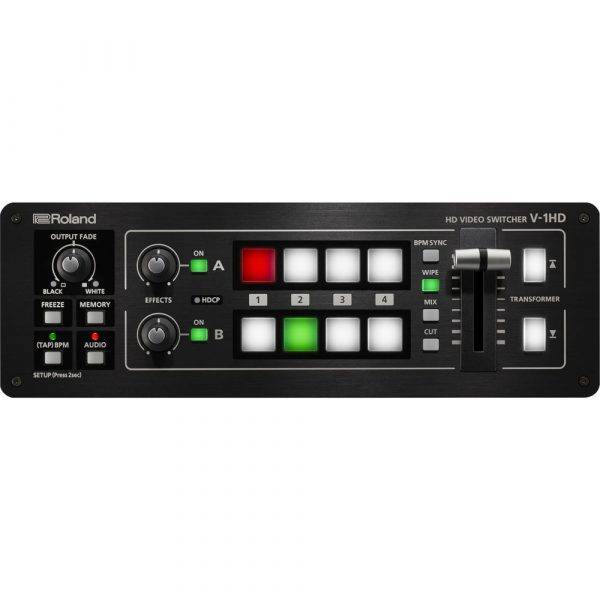

Roland V-1HD makes it easy to connect and switch video cameras, smart phones, computers, tablets, Blu-ray players and other HDMI video sources with a simple push of a button or slide of the T-Fader. It supports professional compositing effects such as picture-in-picture and keying allowing for graphic insets, titling or even “green screen” ideal for news broadcast or corporate training productions.
Support for video cameras, action cameras, smart phones, tablet computers and other HDMI devices
4 HDMI inputs
Supports up to Full HD 1080p
Easy to Use Interface
Picture-in-picture and split functions
Two EFFECTS knobs deliver genuine visual performance
Full 12 Channel Audio Mixer Included
Easy to Operate with Hardware Controls
Two HDMI Outputs
Remote Control via USB or MIDI Connection
Video
Video Processing: 4:2:2(Y/Pb/Pr), 8-bit
Input Connectors: HDMI INPUT 1-4: Type A(19pins)x 4 *HDCP Supported
Output Connectors: HDMI OUTPUT: Type A(19pins) / HDMI PREVIEW: Type A(19pins) *HDCP Supported
Input Formats:
HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
HDMI: 1080/59.94i,1080/50i,1080/59.94p,
1080/50p(FORMAT switch = 1080i or 1080p)
*The input interlaced video signal is converted to progressive video signal by internal processing.
*The video signal frame rate is selected by SETUP parameters (59.94 or 50).
Output Formats:
HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
HDMI: 1080/59.94i,1080/50i(FORMAT switch = 1080i)
HDMI: 1080/59.94p,1080/50p(FORMAT switch = 1080p)
*The video signal frame rate is selected by SETUP parameters (59.94 or 50).
Video Effects
Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types),
TRANSFORMER(11 types)
EFFECTS: NEGATIVE, EMBOSS, COLORIZE, COLORPASS, POSTERIZE, SILHOUETTE,
MONOCOLOR, FINDEDGE, FLIP, WH-LUMIKEY@, BK-LUMIKEY@,
GR-CHROMAKEY@, BL-CHROMAKEY@, PinP(1/4)@, PinP(1/2)@,
SPLIT(H-STRETCH)@. SPLIT(H-CENTER)@, SPLIT(V-STRETCH)@,
SPLIT(V-CENTER)@
*@ marked Effects are effected common to A-BUS and B-BUS.
Audio
Audio Processing: Sampling rate: 24bit/48kHz
Input Connectors
Digital: HDMI INPUT 1–4 (19 pins) x 4
Analog: AUDIO IN (RCA pin type), MIC (Stereo mini type, plug-in power supported)
Output Connectors:
Digital: HDMI OUTPUT (HDMI Type A 19 pins), HDMI PREVIEW (HDMI Type A 19 pins)
Analog: AUDIO OUT (RCA pin type), PHONES (Stereo mini type)
Input Level: AUDIO IN: -10 dBu (Maximum : +8 dBu), MIC: -41 – -13dBu (Maximum : -1 dBu)
Input Impedance: AUDIO IN: 15 k ohms, MIC:10 k ohms
Output Level: AUDIO OUT: -10 dBu (Maximum : +8 dBu), PHONES: 72mW + 72mW (32 ohms)
Output Impedance: AUDIO OUT: 1k ohms, PHONES: 10 ohms
Audio Effects: EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
Others
Other Connectors: USB: B Type (for remote control from PC), MIDI: IN, OUT/THRU
Other Functions:
MEMORY (8 types), FREEZE (input video captured),
BPM SYNC (auto transition synchronized to tempo), OUTPUT FADE (WHITE/BLACK)
Power Supply: AC adaptor
Current Draw: 1.5A
Power Consumption: 18W
Dimensions: 313 (W) x 102 (D) x 59 (H) mm / 12-1/3 (W) x 4 (D) x 2-1/3 (H) inches
Weight: 1.2 kg (excluding AC adaptor) 2 lbs 10-2/5 oz
Accessories: Owner’s Manual, AC Adaptor, Power Cord, Cord Hook
