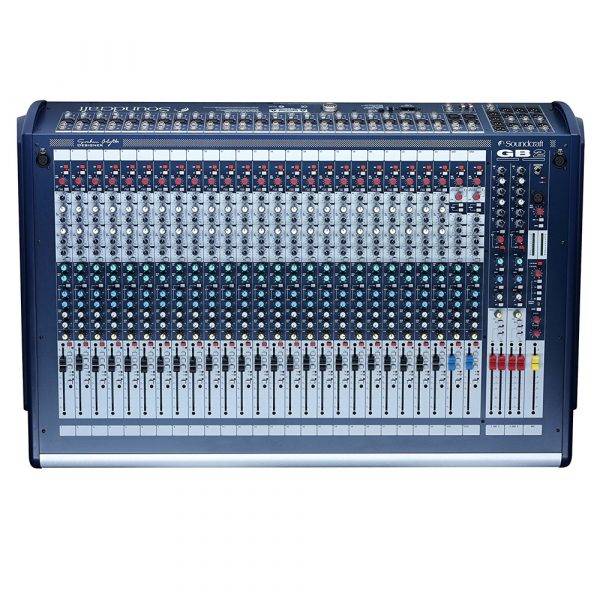

Soundcraft GB2 32 Mono Channel Live Sound / Recording Console

Soundcraft GB2 32 Mono Channel Live Sound / Recording Console

Out of stock
SKU: SOUGB232 Category:

Soundcraft GB2 is available in 16, 24, 32 channel frames to suite specific needs in live sound mixing. This model is configured with 32 input channels. 32 inputs feature microphone and line level connections, an additional 2 stereo inputs are also provided. The stereo inputs (STE1 – STE2) provide L/R stereo line level inputs and 3-pin XLR microphone inputs for stereo microphone placement when capturing vocals, instruments, ambiance, etc.

The console features 2 stereo paired group outputs enabling routing to monitors, external recorders, etc. The GB2 series implements Soundcraft’s GB30 microphone preamp and EQ, delivering the sonic quality expected of more costly consoles. Additional features include Soundcraft’s famed matrix mixer for added routing flexibility and an integrated meter bridge, enabling accurate metering.


32 Mono, 2 Stereo Input Channels
The GB2 series is available in a variety of frame configurations. This model features 32 mono and 2 stereo inputs

2 Subgroup Outputs
The GB2 series feature 2 group outputs for routing to external recorders, monitors, etc.

Matrix Mixer
The matrix output mixer provides added routing flexibility.

4 Auxiliary Sends
4 auxiliary sends provide plenty of routing to external effects, monitors, etc.

Direct Outputs
All mono inputs provide direct outputs for direct routing to recorders, mixers, etc.


Total # Of Inputs: 32 Total

Mic/Line Inputs:

32 Line: 1/4″ TRS Phone
32 Microphone: 3-pin XLR

Stereo Line Inputs: 2 Stereo: L/R Paired 1/4″ Phone Line & 3-pin XLR Microphone

In-Line Inputs/Returns: No

AUX Sends: 4 Aux Sends

AUX Returns: 4 Stereo Returns

Inserts: 1/4″ TRS Phone – Mono Inputs, Main Output and Subgroup Outputs

BUS (Group) Outputs: 2 Subgroups: Balanced 3-pin XLR

2 Trk Master I/O: Mix L/R: Stereo Paired 3-pin XLR Balanced and 1/4″ Phone

ALT I/O: ALT Stereo: L/R Stereo Paired 1/4″ Output

Monitor Outputs: Monitor: L/R Stereo Paired 1/4″ TRS Phone

EQ Section:

High Filter: 13kHz, +/- 15dB, 2nd order shelving
Hi-Mid: 550Hz – 13khz, +/- 15dB, Q=1.5
Lo-Mid: 80Hz – 1.9kHz, +/- 15dB, Q=1.5

Low Filter: 80Hz, +/- 15dB, 2nd order shelving

Solo/Mute: All Input Channels

Channel Level Control: 100mm Faders

Trim/Gain Control:Rotary Potentiometers

Phantom Power: +48V Phantom individually switched

Metering: 12-segment LED bar graphs

Frequency Response: 20Hz to 20kHz <1dB

Dynamic Range: Not Specified by Manufacturer

Signal-to-Noise Ratio:
Measured RMS, 22Hz to 22kHz Bandwidth
-128dBu Mic E.I.N. @ unity gain, 150 ohms source impedance

Total Harmonic Distortion (THD): <0.006%Mic sens. -30dBu, +20dBu at all outputs @ 1kHz

Power Supply:
Internal AC PSU – 85V, 270V AC, 50/60Hz universal input
Power Consumption
Less than 150W

Dimensions (WxHxD): 49.09 x 6.24 x 25.81″ (1247 x 159 x 656mm)
