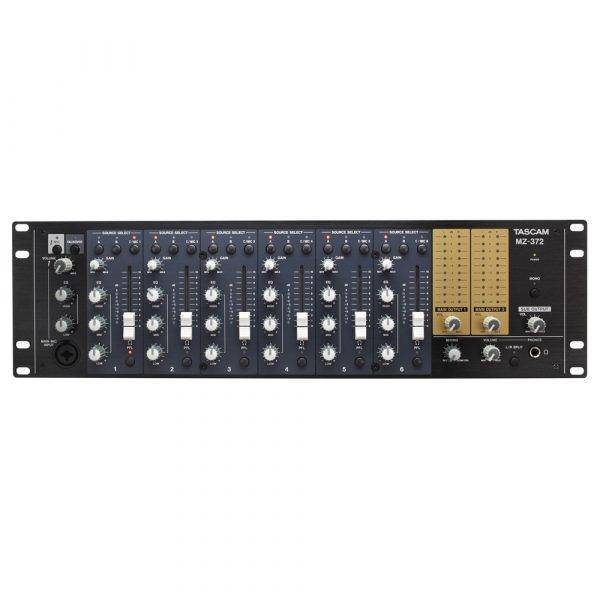

Tascam MZ-372 Industrial Grade Zone Mixer

Tascam MZ-372 Industrial Grade Zone Mixer

$399.99

2 in stock

Qty:
Compare
SKU: TASMZ372 Category:
snap finance

Description

Tascam MZ-372 is designed for permanent installation, and is able to provide versatile routing, mixing, and control of multiple audio sources in an attractive easy-to-operate 3U package. For maximium flexability, source content can include music, spoken word (microphone), turntable, and more – all easily controlled via familiar sliders and assignment controls.

Features

Maximum flexibility for audio routing, input selection, and multiple redundant output flow, perfect for integrator, musical instrument, and residential applications

Multiple inputs include 12 sets of stereo RCA-type, 6 selectable mic/line XLR, and a dedicated front-panel XLR mic input; 19 total input “sets”

Channel audio sources can easily be selected, muted, and contoured via simple volume sliders, toggle switches/buttons, and knobs

Two redundant output channels each with stereo XLR balanced and unbalanced RCA-type connectors; each with separate volume control

Separate stereo booth, recording, and headphone outputs each with independent control

One additional mic-compatible XLR input on the front panel with “Talkover” function automatically lowering source audio

Independent three-band EQ per each of the 5 channels and a two-band EQ on the additional front panel microphone input

Compact 3U rack mount design

Specification

Audio inputs

MAIN MIC INPUT (BALANCED) jacks

Connectors XLR-3-31 (1 GND, 2 HOT, 3 COLD)

6.3mm (1/4″) standard TRS jacks (Tip HOT, Ring COLD, Sleeve GND)

Input impedance: 33 kΩ

Nominal input level: -65 dBu (VOLUME knob at MAX)

Nominal input level: -10 dBu (VOLUME knob at MIN)

Gain range: 55 dB

INPUTS MIC (BALANCED) jacks

Connectors: XLR-3-31 (1 GND, 2 HOT, 3 COLD)

Set to MIC

Maximum input level: 10 dBu

Minimum input level: -65 dBu

Input impedance: 33 kΩ

Set to LINE

Nominal input level: -1 dBu

Maximum input level: 20 dBu

Input impedance: 22 kΩ

INPUTS LINE (UNBALANCED) jacks

Connectors: RCA pin jacks

Nominal input level: -10 dBV

Maximum input level: 10 dBV

Input impedance: 22 kΩ

Audio outputs

MAIN OUTPUTS (UNBALANCED) jacks

Connectors: RCA pin jacks

Rated output level: -10 dBV

Maximum output level: 6 dBV

Output impedance: 200 Ω

MAIN OUTPUTS (BALANCED) jacks

Connectors: XLR-3-32 (1 GND, 2 HOT, 3 COLD)

Rated output level: 4 dBu

Maximum output level: 24 dBu

Output impedance: 200 Ω

SUB OUTPUT connectors

Connectors: RCA pin jacks

Rated output level: -16 dBV

Maximum output level: 0 dBV

Output impedance: 200 Ω

MONITOR OUT jacks

Connectors: RCA pin jacks

Rated output level: -16 dBV

Maximum output level: 0 dBV

Output impedance: 200 Ω

PHONES jack

Connectors: 6.3mm (1/4”) standard stereo jack

Maximum output: 50 mW + 50 mW (into 32 Ω load)

Audio performance

Frequency response: 20 Hz–20 kHz

Distortion: 0.03% or less

Crosstalk: 65 dB

General

Power

Dedicated AC adapter (TASCAM PS-M1524)

Input voltage: AC 100–240V ~, 50/60Hz

Output voltage: DC 15V

Output current: 2.4 A

Power consumption: 35 W

Dimensions: 482.0 (19″) x 132.0 (5 1/8″) x 93.2 mm (3 5/8″) (wxhxd, including protrusions)

Weight: 3.2 kg (7.05 lb)
