TASCAM US-1x2HR 2-in 2-out USB-C Audio Interface

TASCAM US-1x2HR 2-in 2-out USB-C Audio Interface

In stock
SKU: TASUS12HR Category:
snap finance

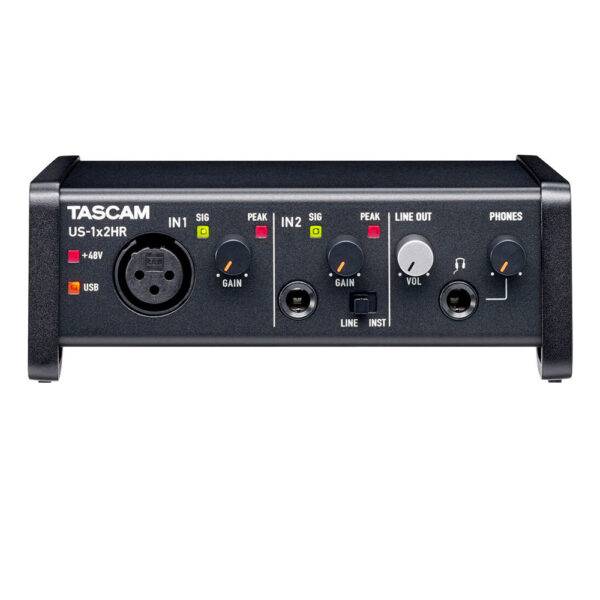

Tascam US-1x2HR

Tascam US-1x2HR 2-in/2-out USB-C Audio Interface is designed for solo artists. This US-1X2HR interface has one XLR mic input and one TRS instrument/line input, both of which are switchable to line inputs on RCA connectors. There are two RCA outputs.

The new US-1x2HR ships with USB cable (Type-A to Type-C), and DAW software installation guide. Also, this audio interface includes DAW plug-in software installation guide set, and Owner’s manual (warranty card included).


Interface for podcasts and live streaming

The Tascam US-1x2HR can be used with computers or smartphones to easily create podcasts or live streams. The audio can be switched between stereo/mono, and the loopback function allows the audio from the computer to be returned to the streaming software for playback during live streams. US-1x2HR also supports OBS, which is popular and used worldwide.

2-in/2-out USB audio interface

Supports up to 24-bit/192 kHz audio formats

Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)

1 XLR input equipped with Ultra-HDDA mic preamp and +48V phantom power

1 TRS line/inst. input

RCA line L/R inputs

RCA line L/R outputs

1 headphone output

USB Type-C connection (USB Type-A to Type-C cable included)

Powered by USB bus power

Zero-latency direct monitoring

Compatible with iPad and other iOS devices

Extensive line-up of bundled software

Steinberg Cubase LE, Cubasis LE 3
IK Multimedia Sample Tank 4 SE
Antares AUTO-TUNE UNLIMITED (available free of charge up to 3 months)

Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)

OBS support


Sampling frequency: 44.1k/48k/88.2k/96k/176.4k/192k Hz

Quantization bit rate: 24bit

Power Requirements: AC/DC Power Adapter (Not Included) or USB Bus Power

AC/DC Power Adapter: 5 VDC at 700 mA (Not Included)

Power Consumption: 1.8 W

Anti-Theft Features: Kensington Security Slot

Operating Temperature: 41 to 95°F / 5 to 35°C

Dimensions: 5.7 x 4.7 x 2.2″ / 14.6 x 12 x 5.5 cm (Including Controls and Protrusions)

Weight: 1.3 lb / 0.6 kg

Accessories: USB cable (Type-A to Type-C), Set of DAW software installation guides, Set of DAW plug-in software installation guides, Owner’s Manual (including warranty)

The Tascam US-1x2HR has just the right weight, so it won’t move when cables are connected or disconnected.

Weight 3 lbs
